Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）
Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）
Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）
Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）
Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）

0052

Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）

Production status: in mass production If you want to know more about this product, please contact us.
Get a Quotation
Sample Request
Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）
Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）
Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）
Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）
Shunconn Through-Wall Stud Terminals200AM8/M6 (with Shroud/red ）
Product Details

PV Connector PV branch connector PV Fuse Connector PV Diode Connector PV Cable assembly PV Cable Solar Tool kit DC Energy Storage Connectors RV junction box Solar panel Junction box Battery connection cable PV DC fusse DC circuit breaker DC Surge protector Energy storage connection cable Energy Storage Connectors



Product Info

Production status: in mass production

If you want to know more about this product, please contact us.

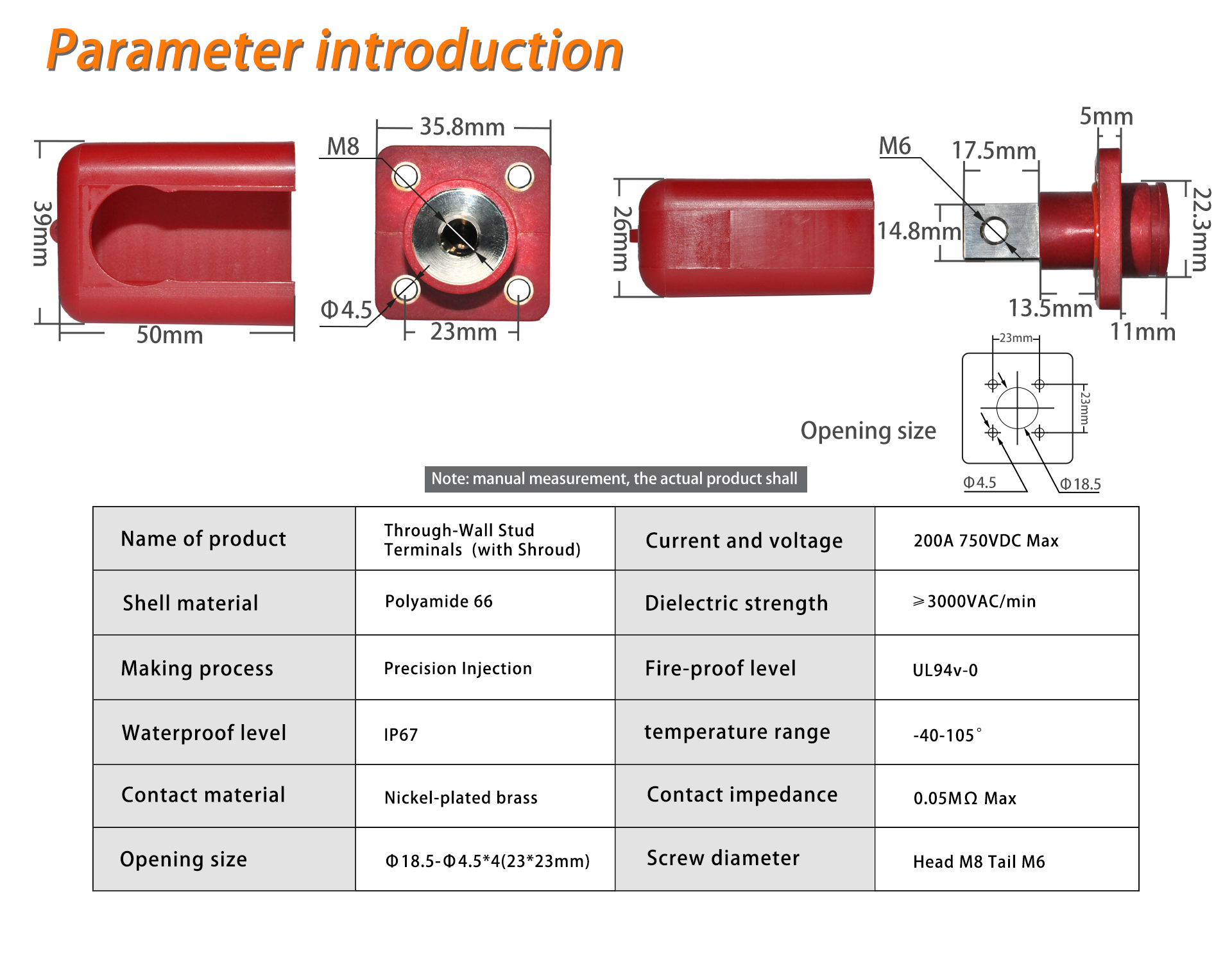

Product Properties

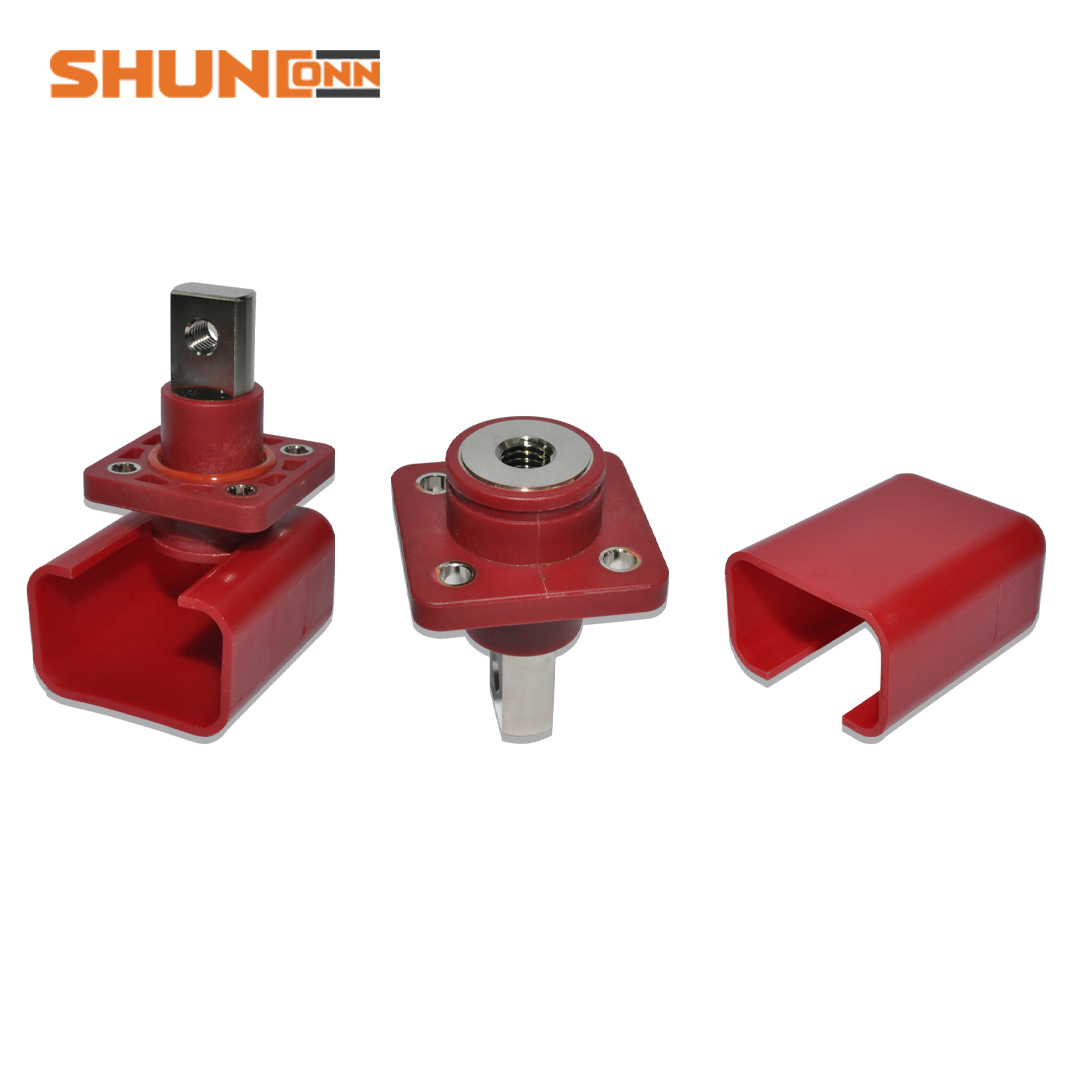

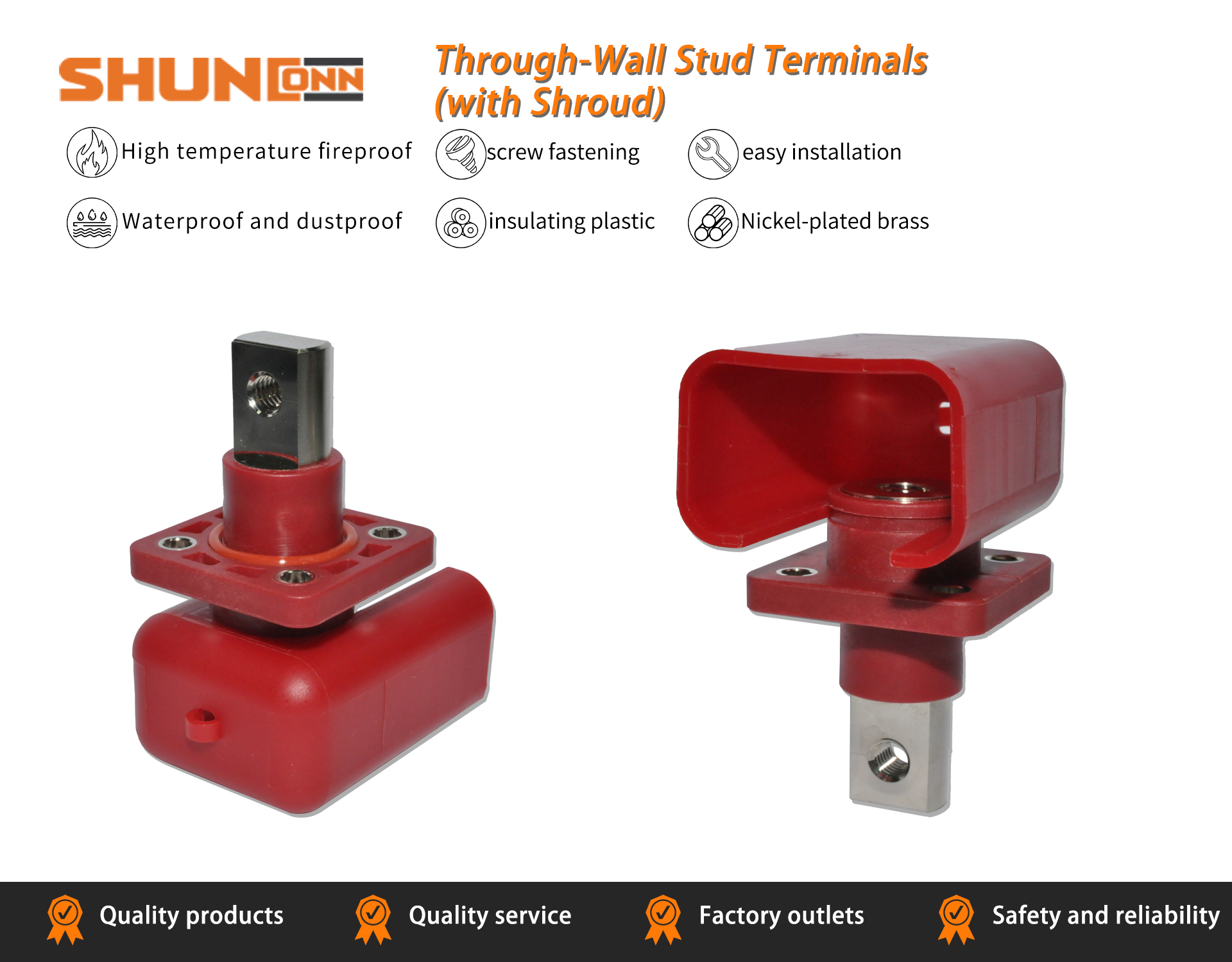

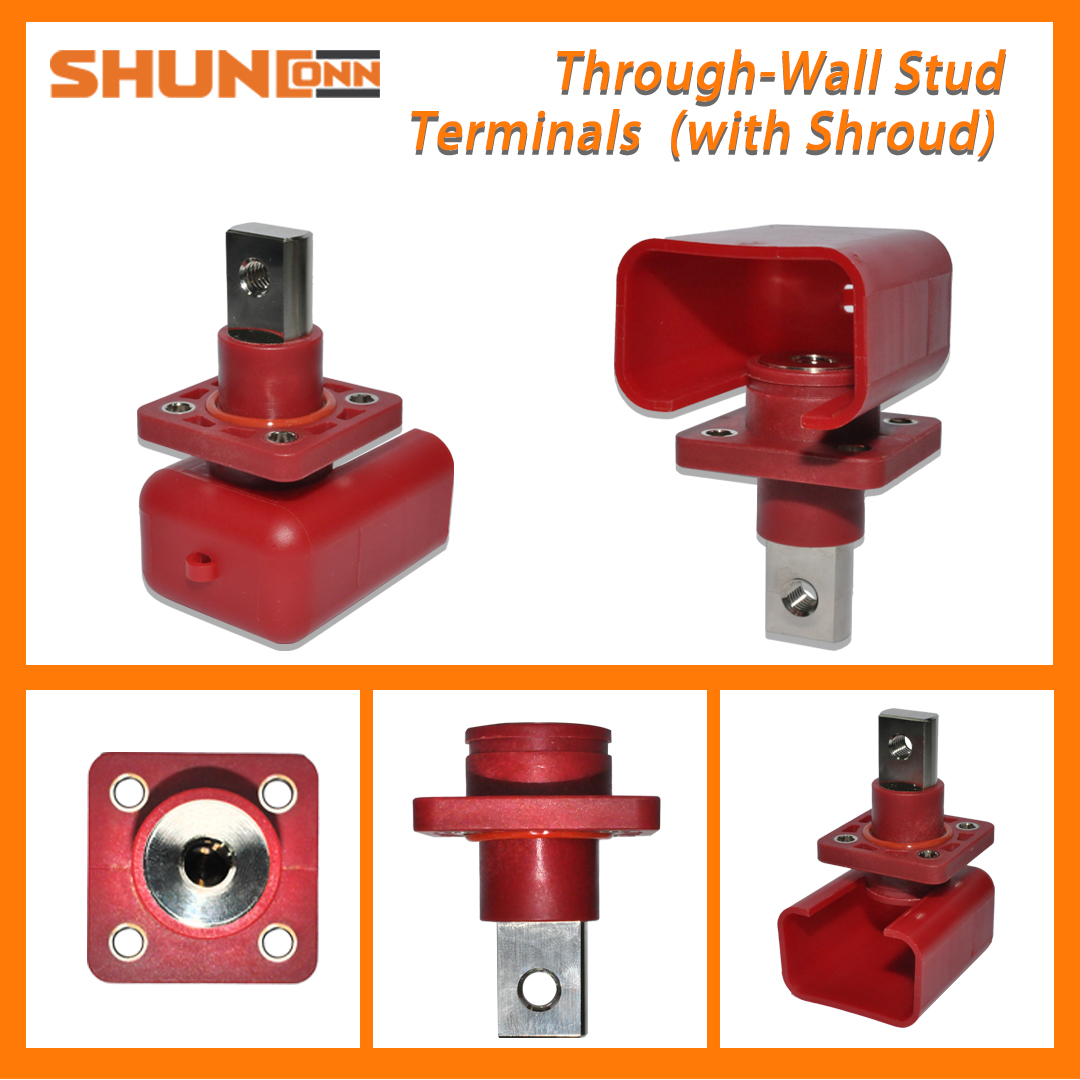

Name of product : Through-Wall Stud Terminals (with Shroud)

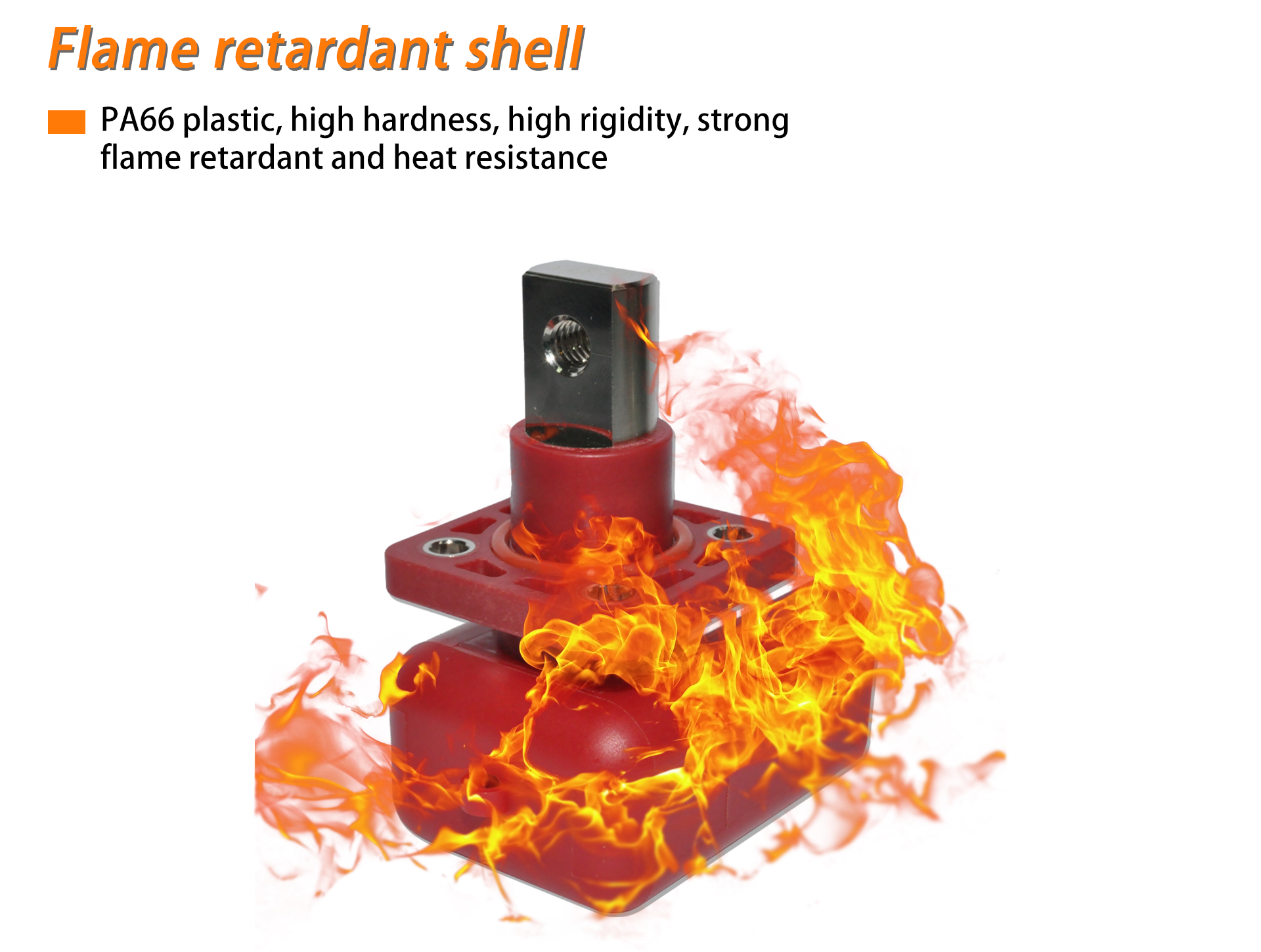

shell material : Polyamide 66

making process : Precision Injection

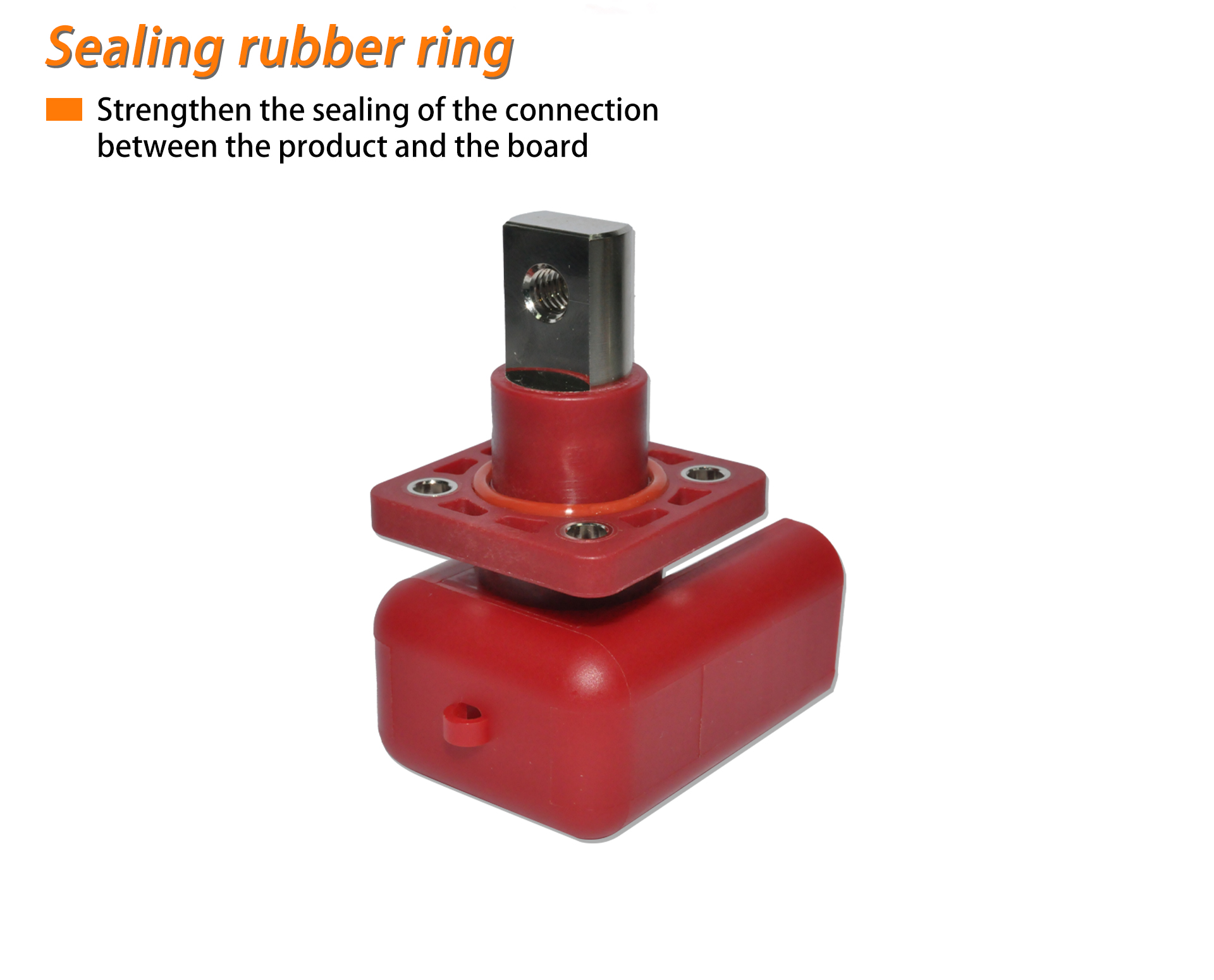

waterproof level : IP67

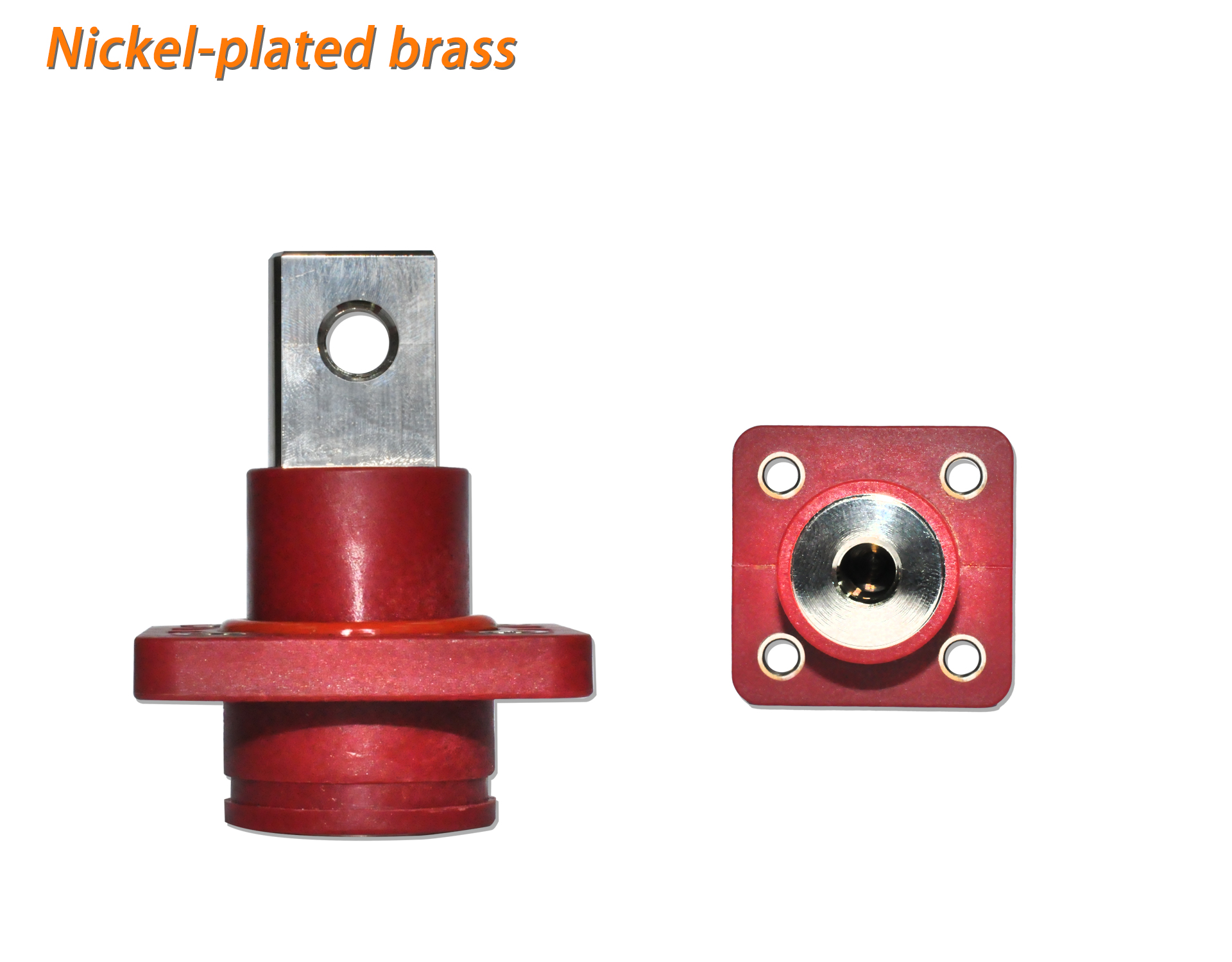

contact material : Nickel-plated brass

Opening size : Φ18.5-Φ4.5*4(23*23mm)

Current and voltage : 200A 750VDC Max

Dielectric strength : ≥3000VAC/min

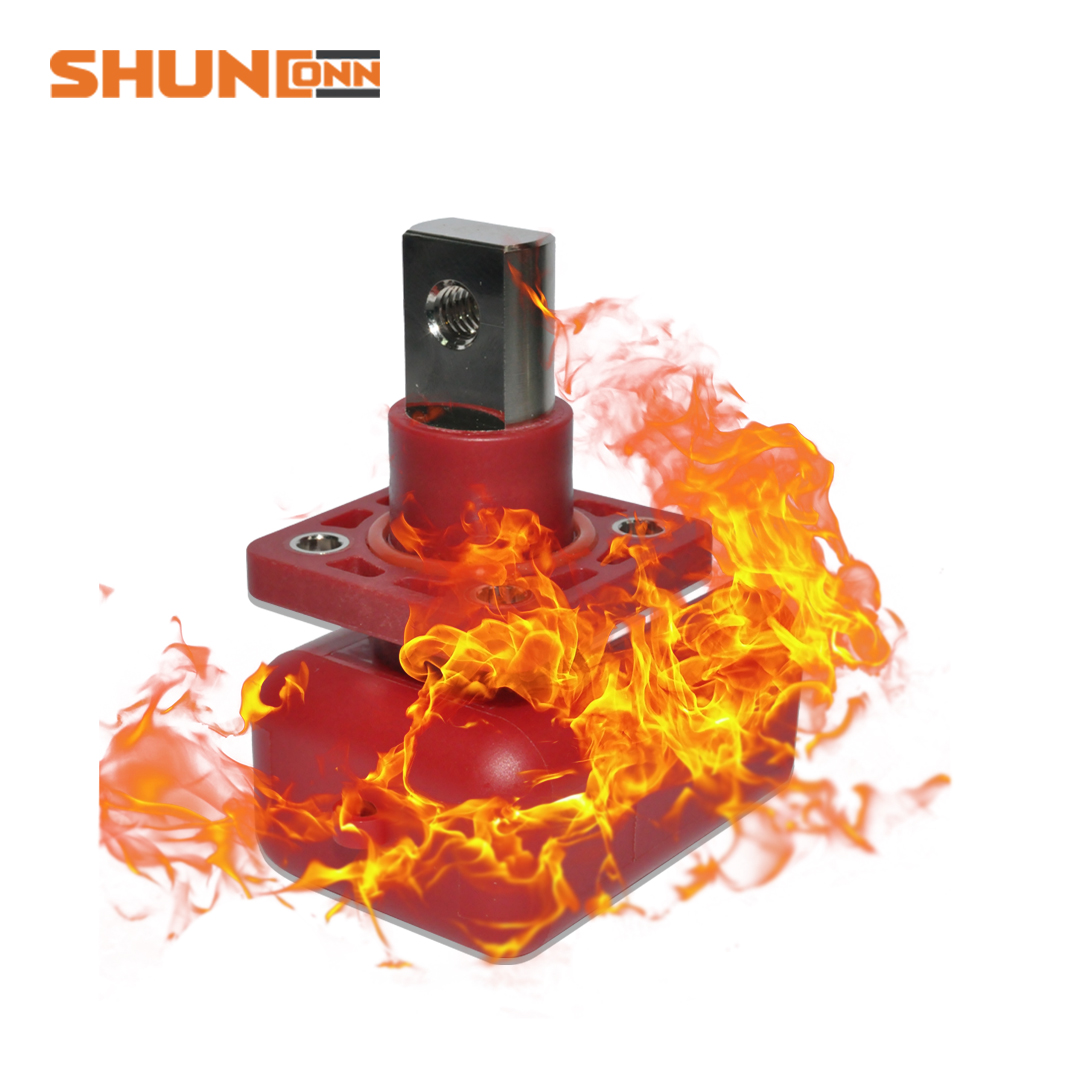

Fire-proof level : UL94v-0

temperature range : -40-105°

Contact impedance : 0.05MΩ Max

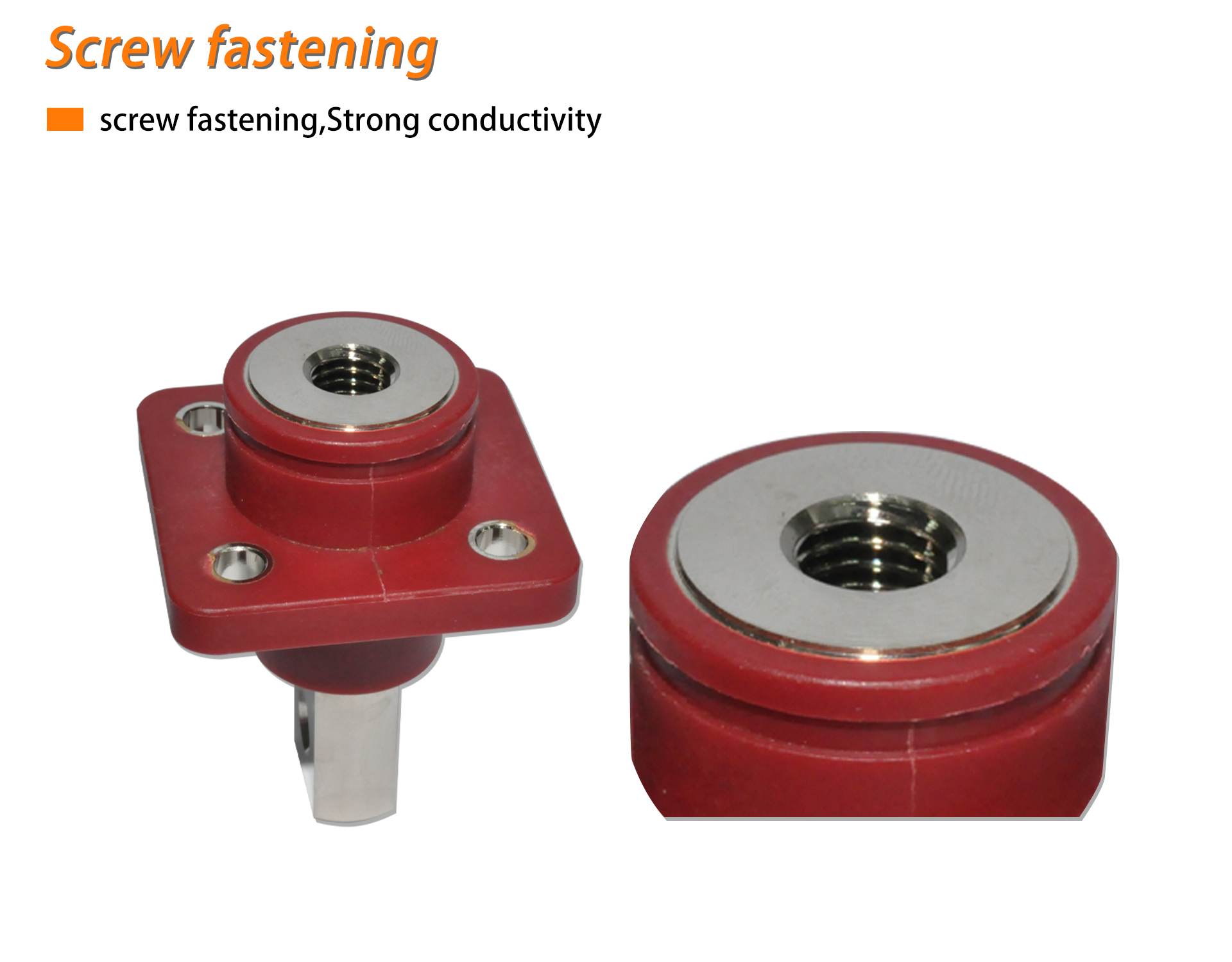

Screw diameter : Head M8 Tail M6

Product Specification
test

tets1

test2

test3
Associated Products

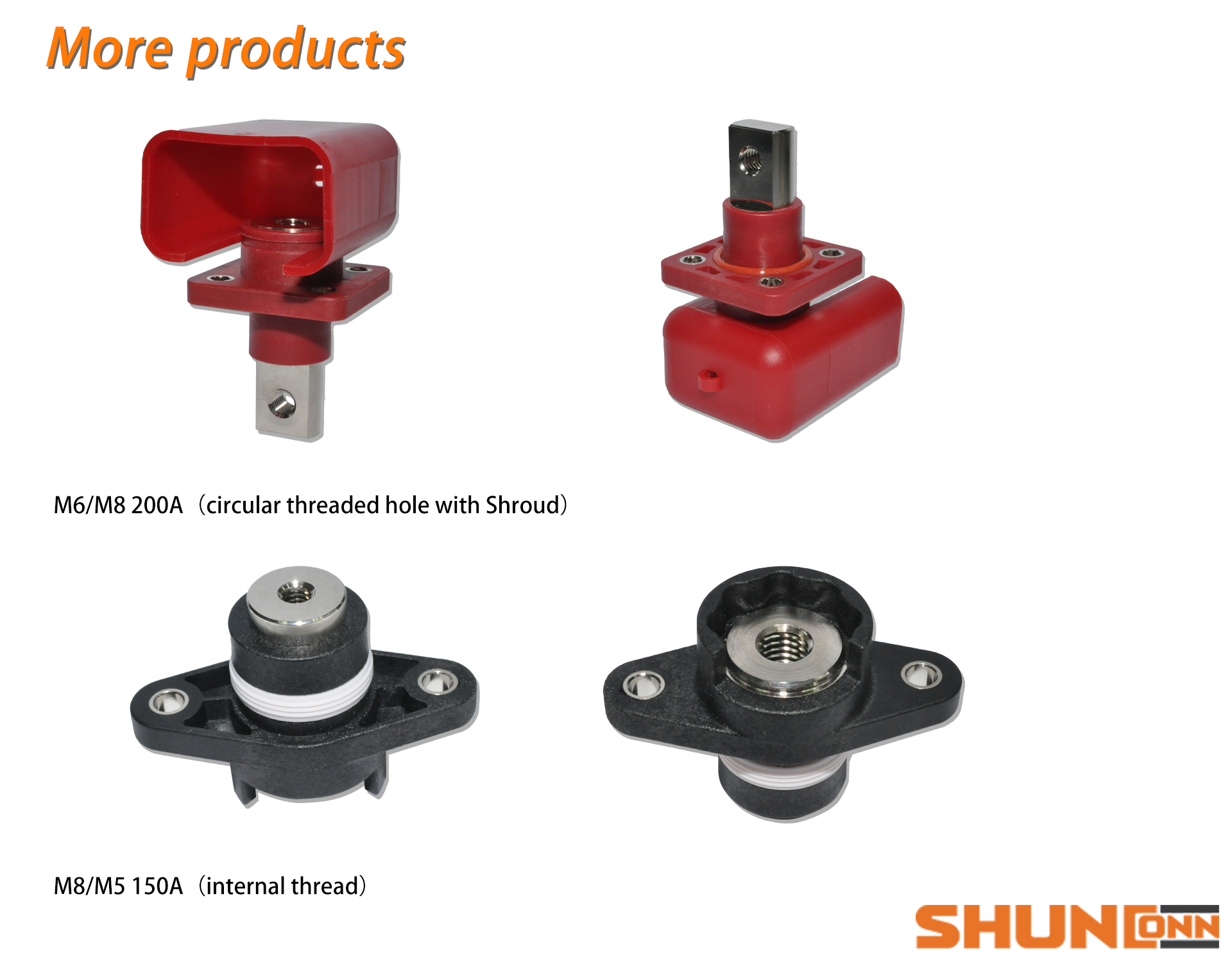

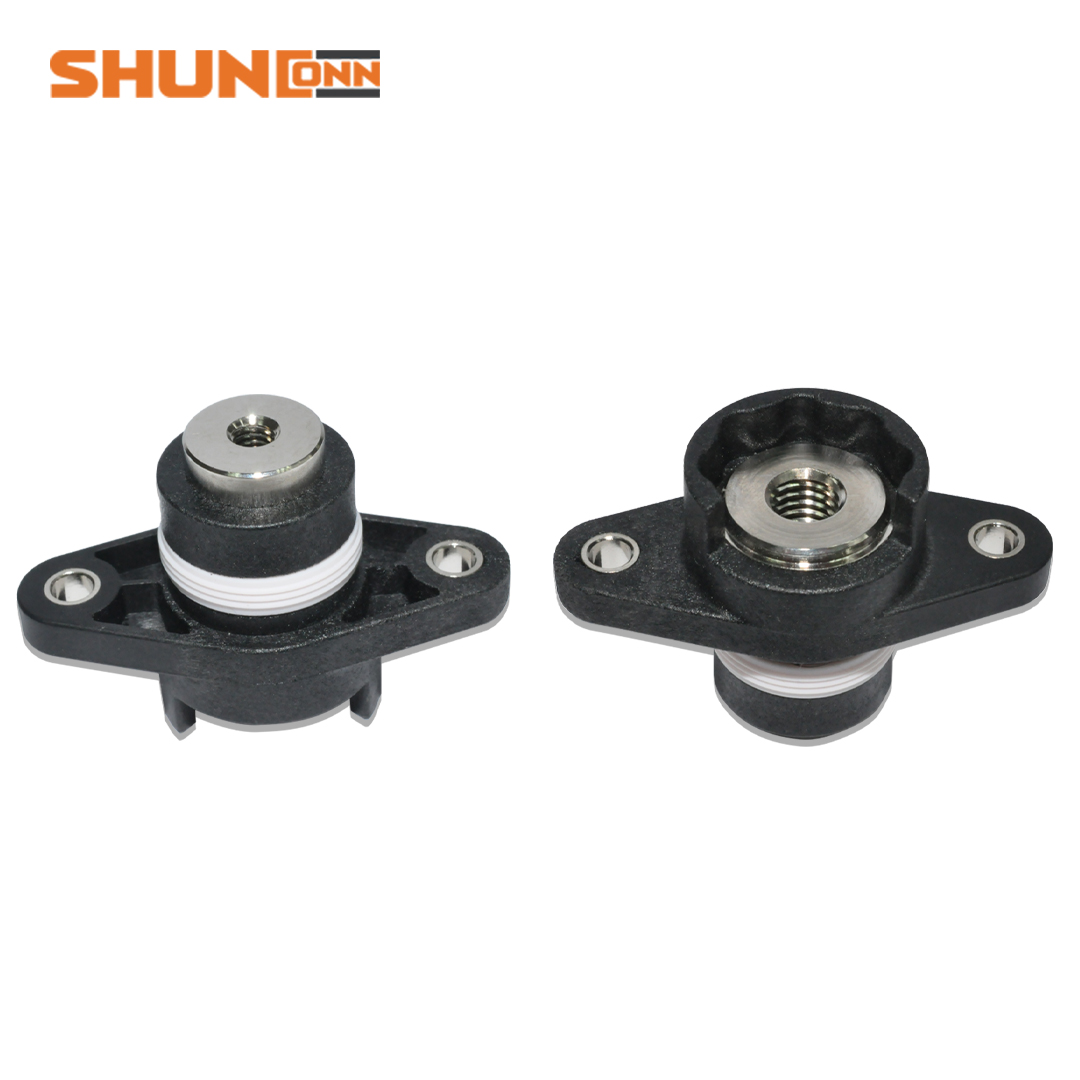

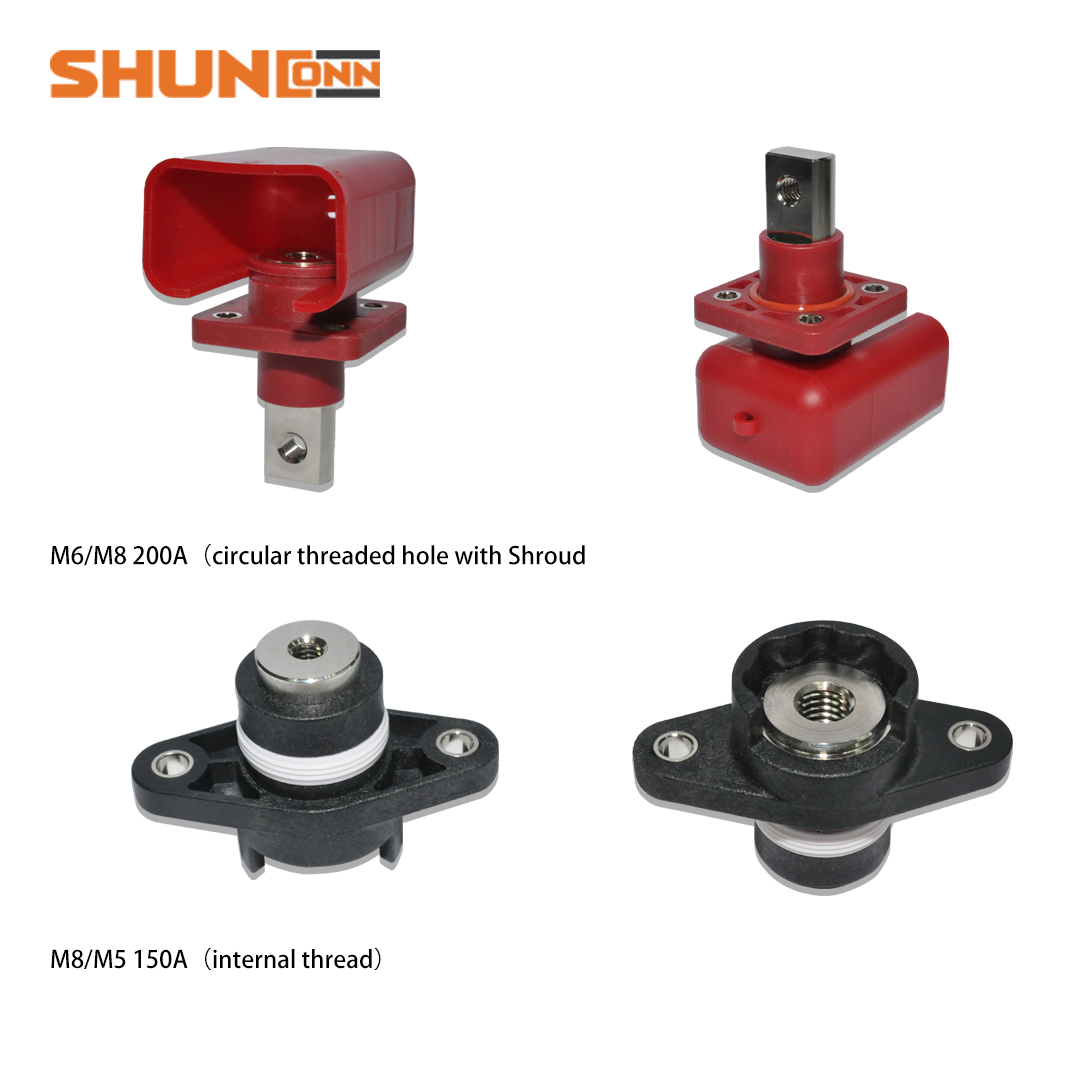

Shunconn Through-Wall Stud Terminals 150AM8/M5(black)
