Production status: in mass production
If you want to know more about this product, please contact us.

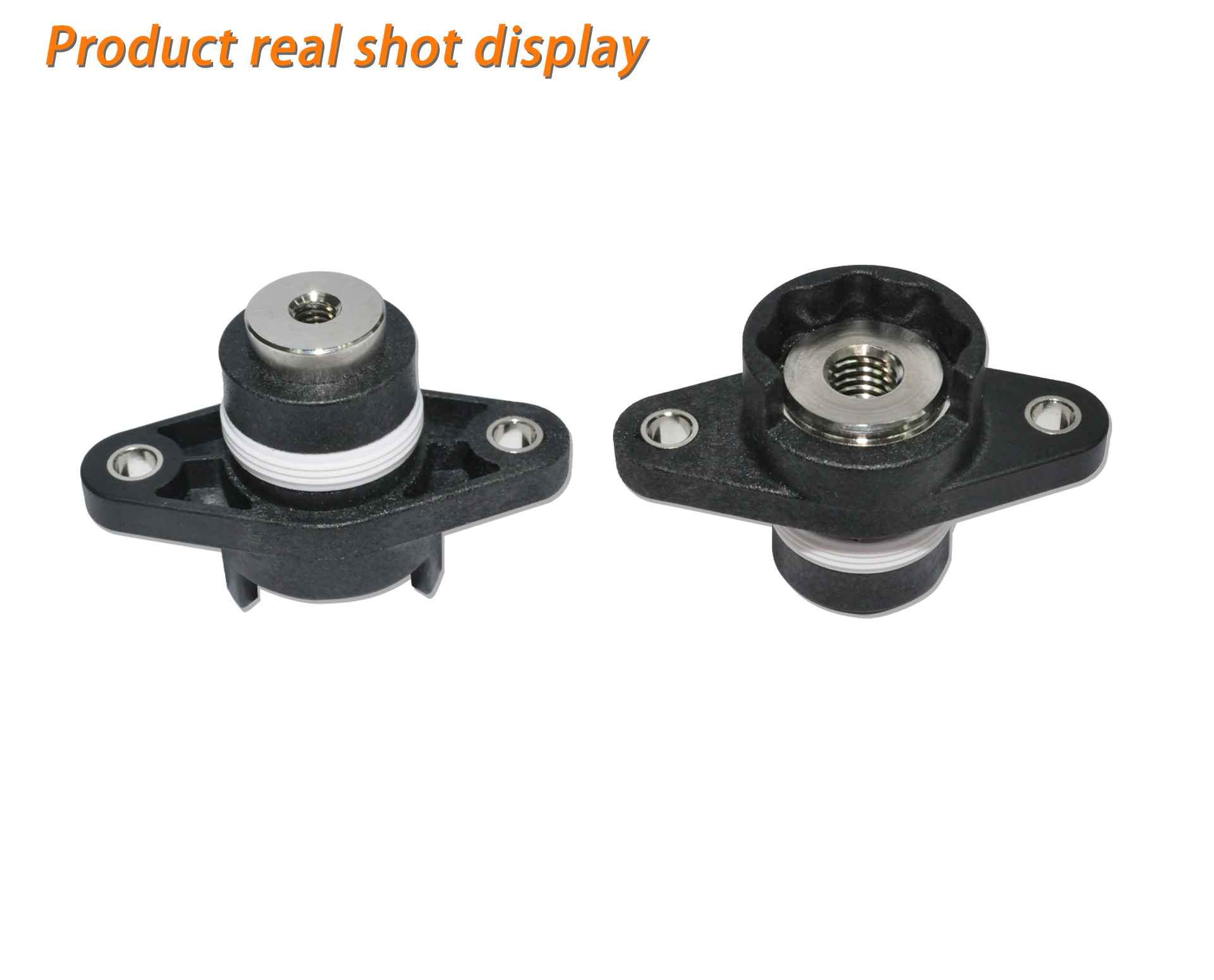

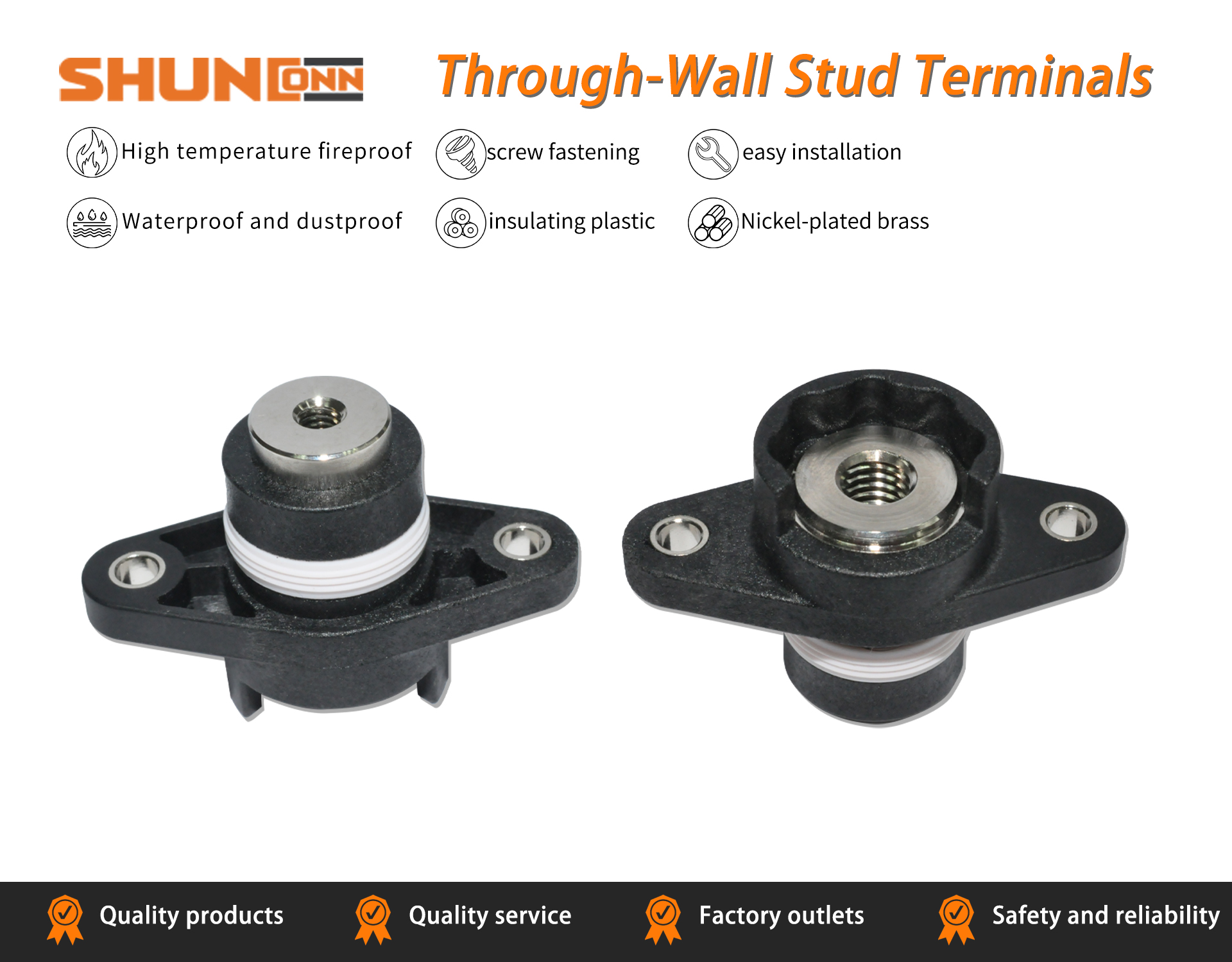

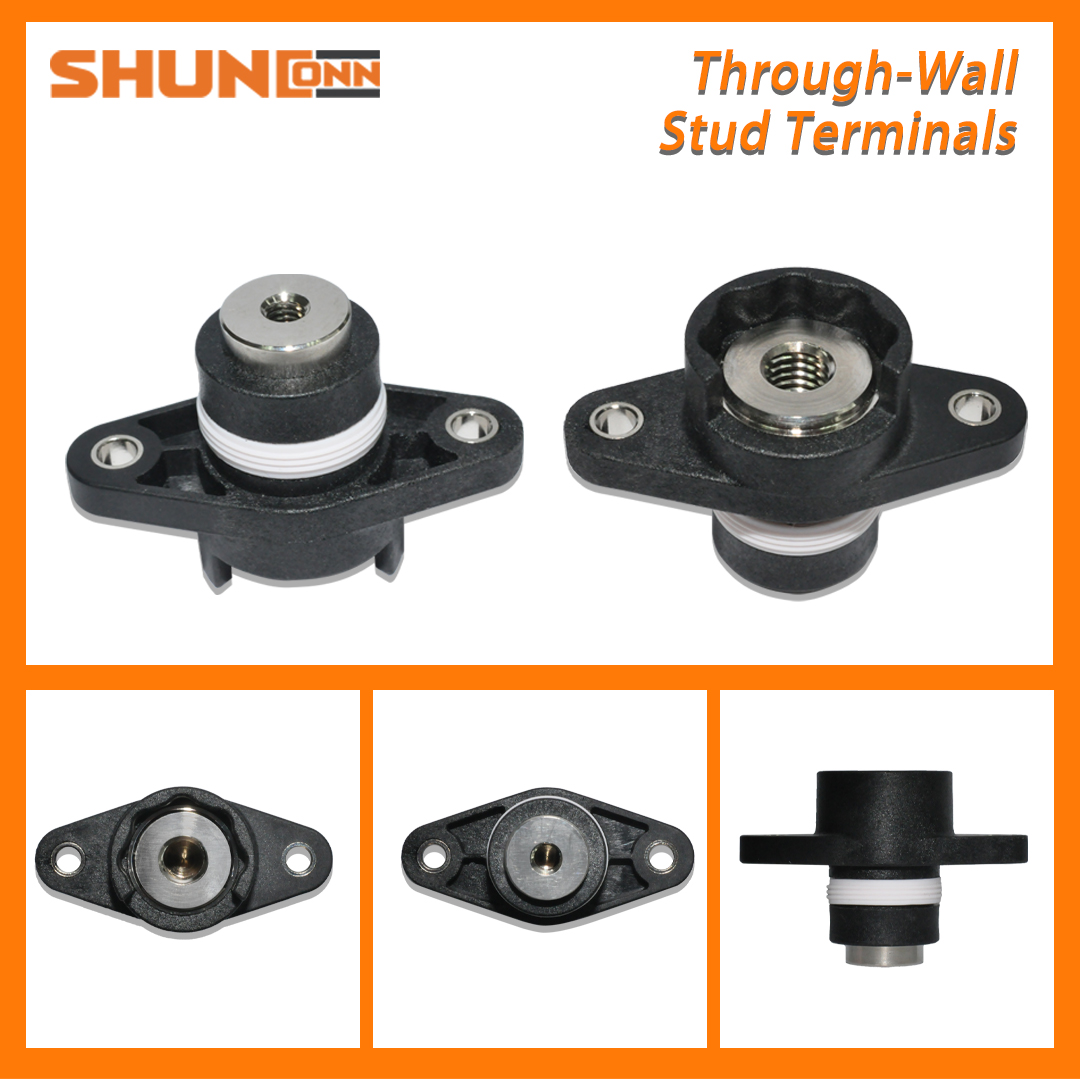

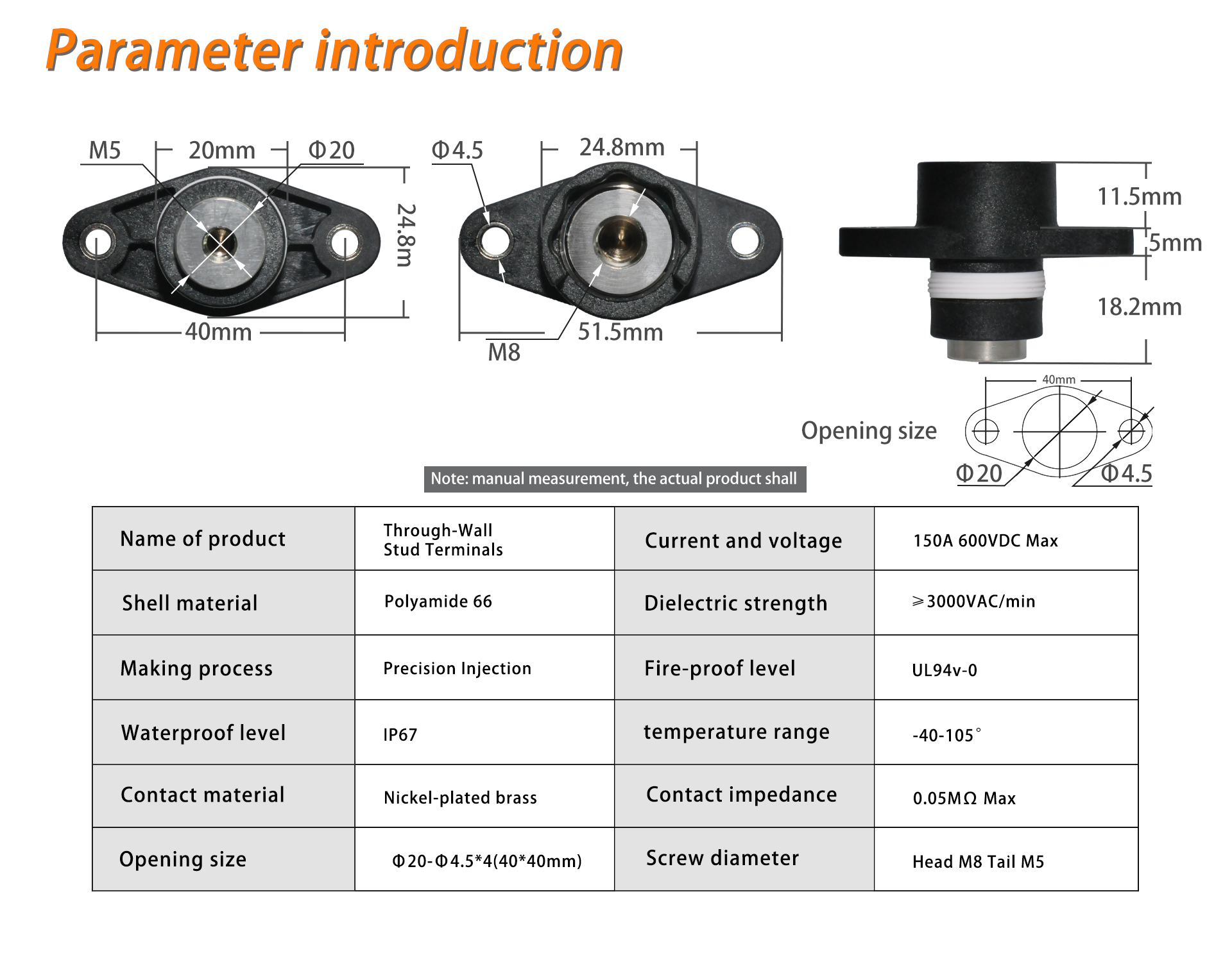

Name of product : Through-Wall Stud Terminals

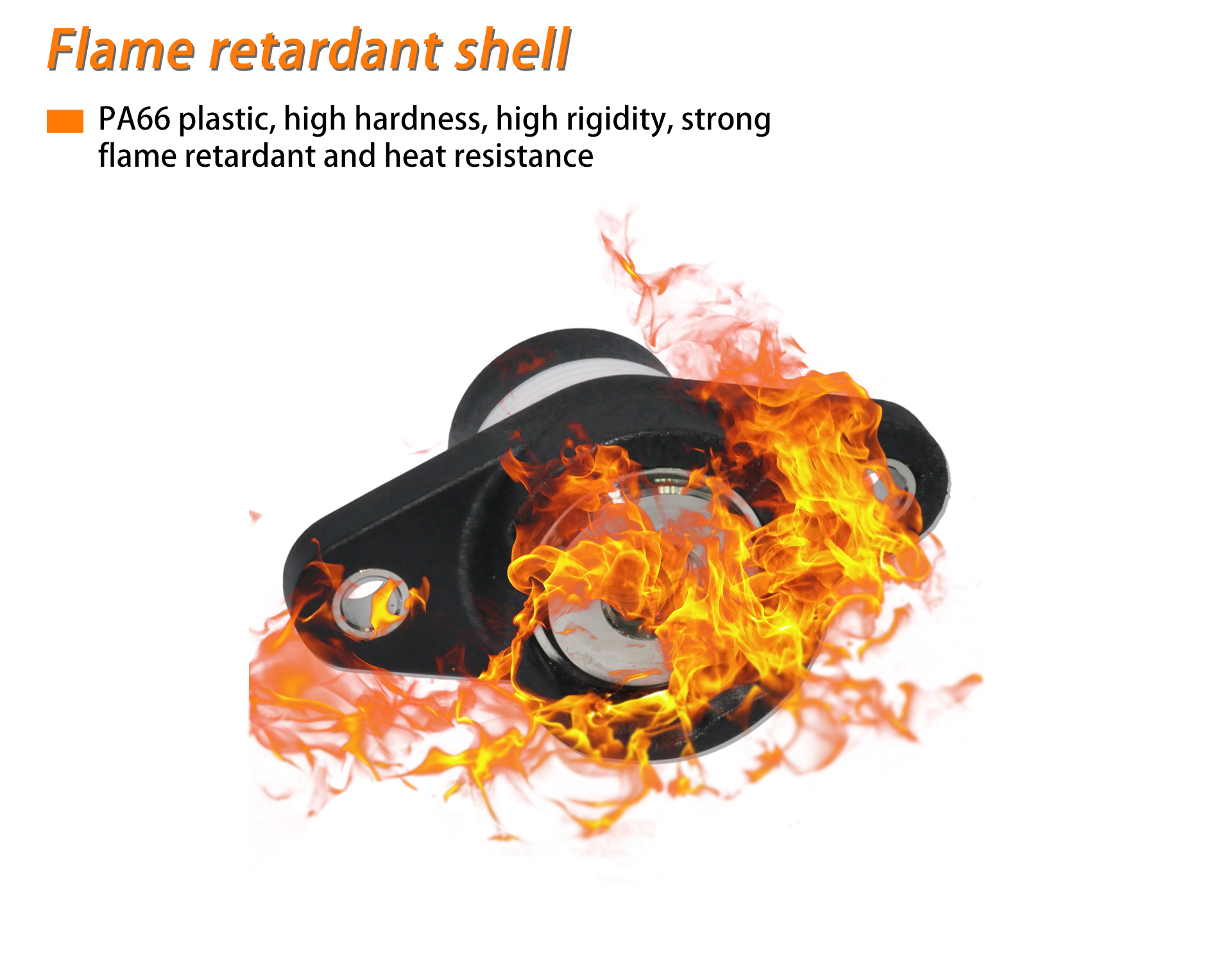

shell material : Polyamide 66
making process : Precision Injection

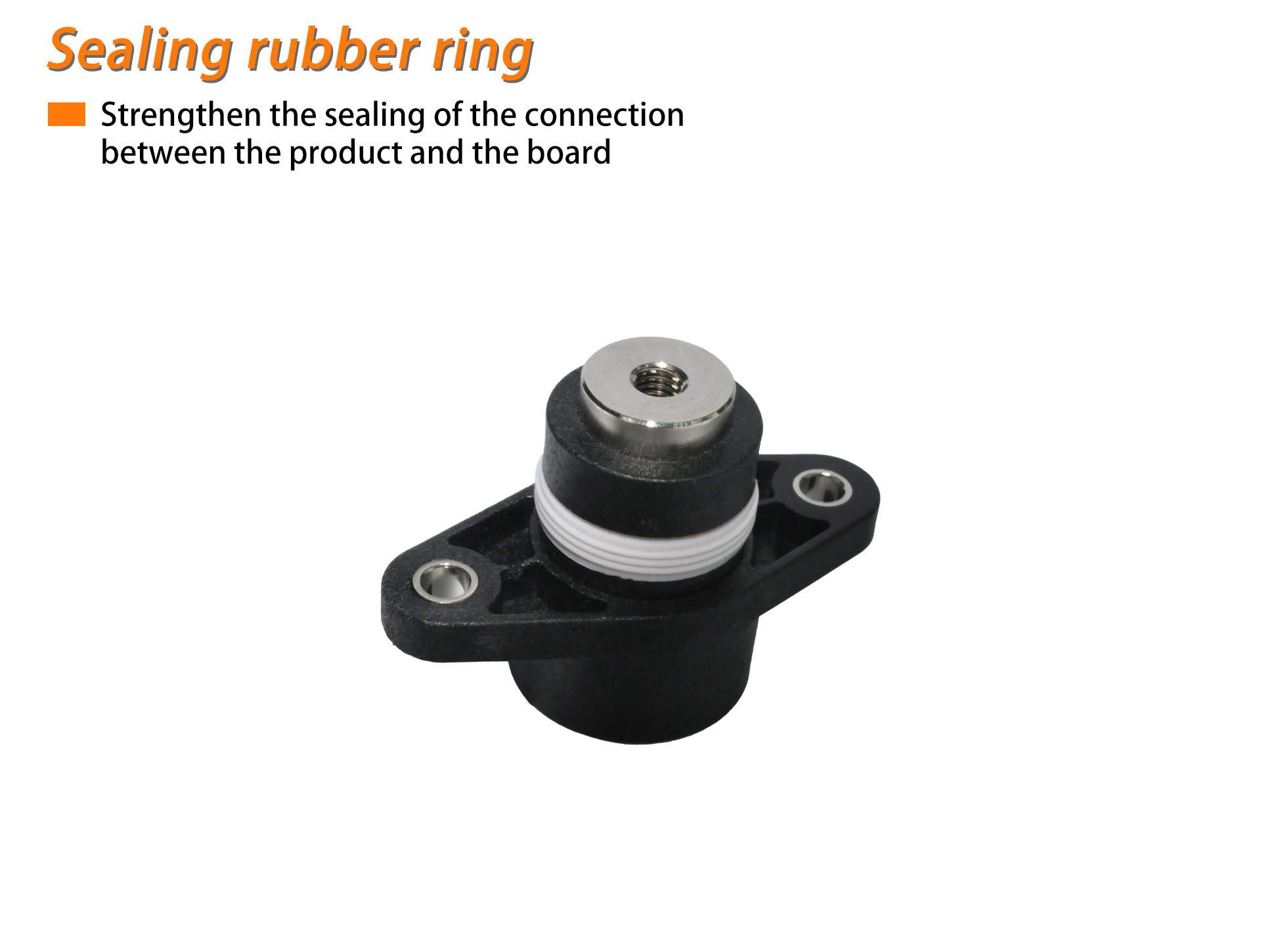

waterproof level : IP67

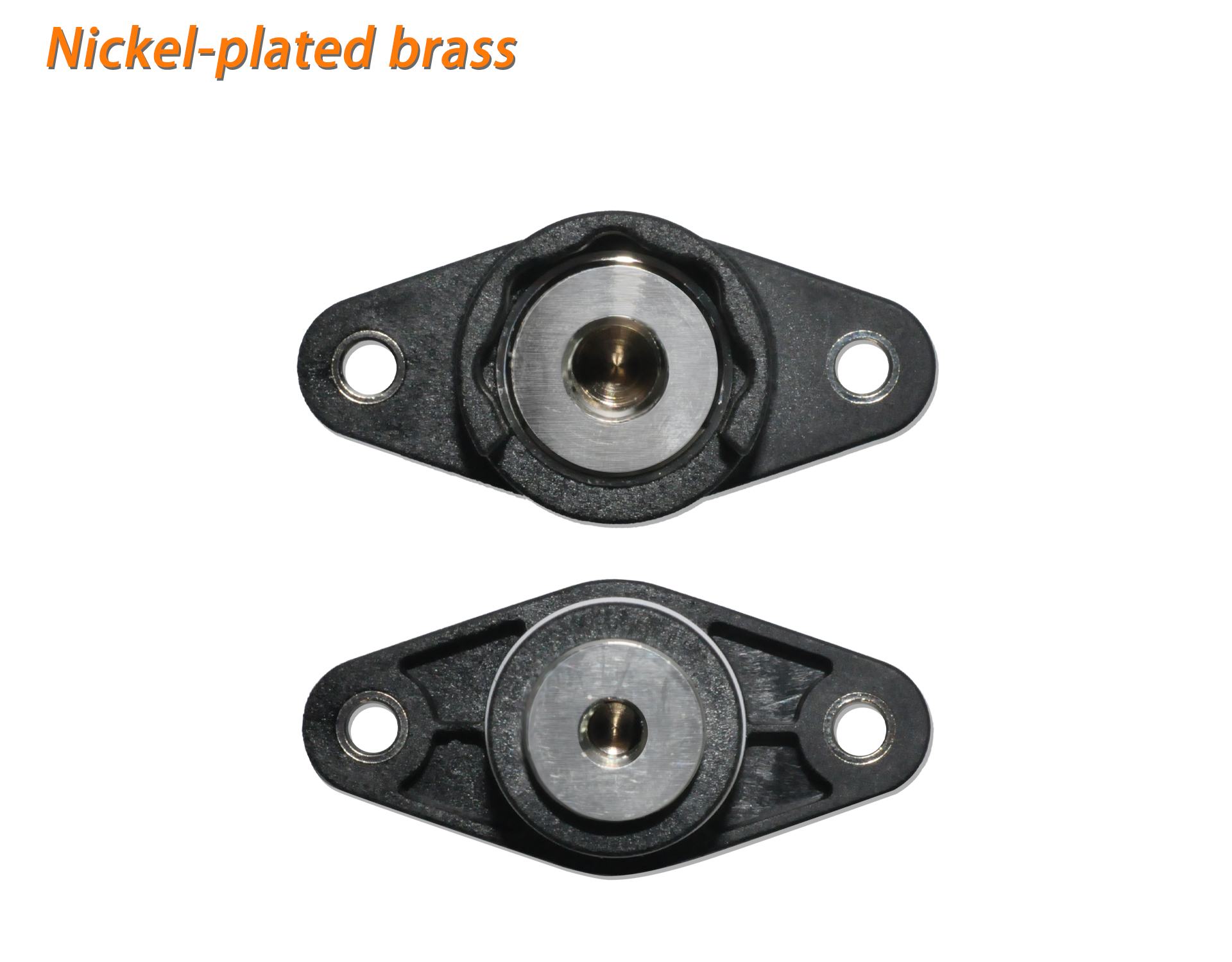

contact material : Nickel-plated brass
Opening size : Φ20-Φ4.5*4(40*40mm)
Current and voltage : 150A 600VDC Max
Dielectric strength : ≥3000VAC/min
Fire-proof level : UL94v-0
temperature range : -40-105°
Contact impedance : 0.05MΩ Max

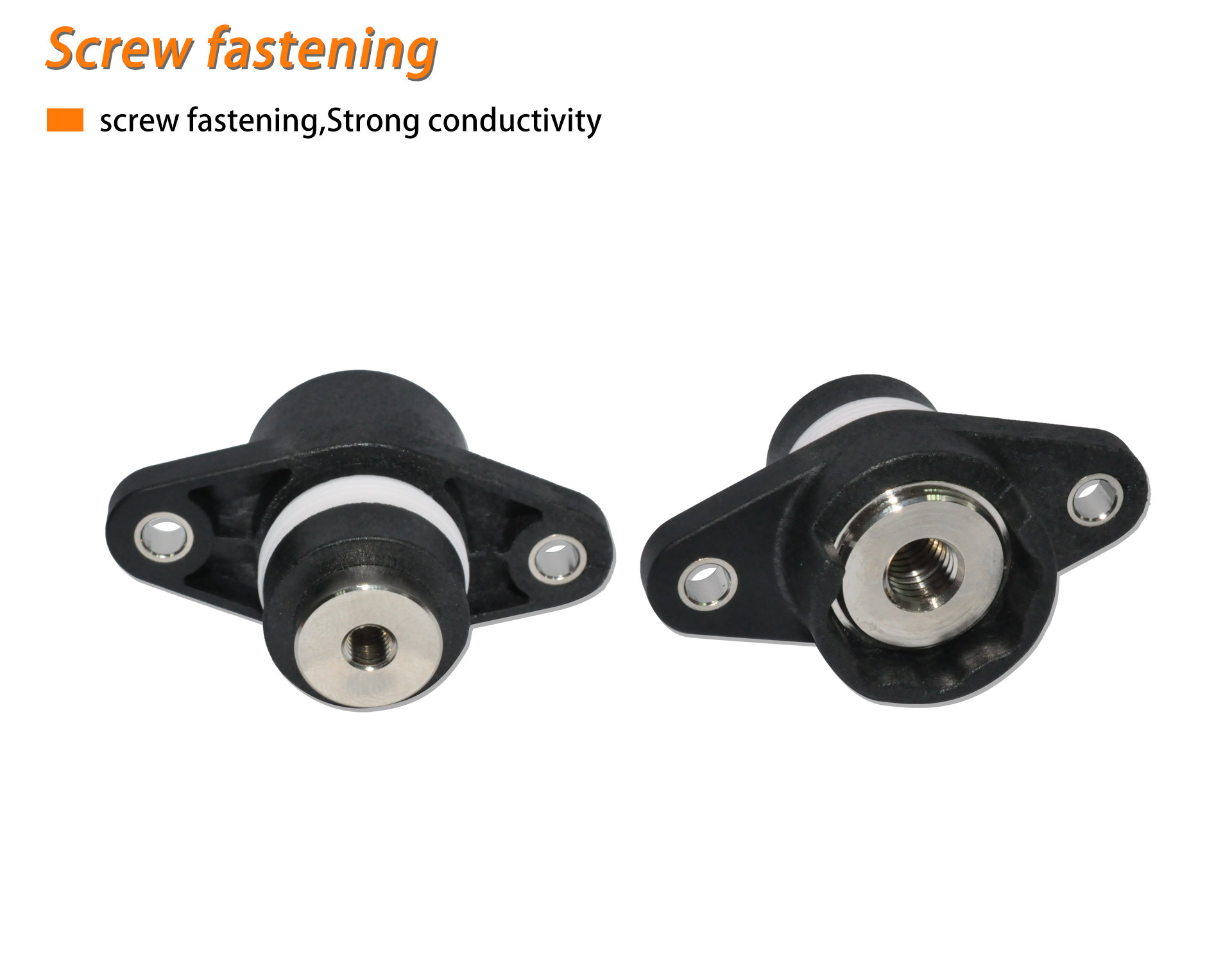

Screw diameter : Head M8 Tail M5
