Production status: in mass production
If you want to know more about this product, please contact us.

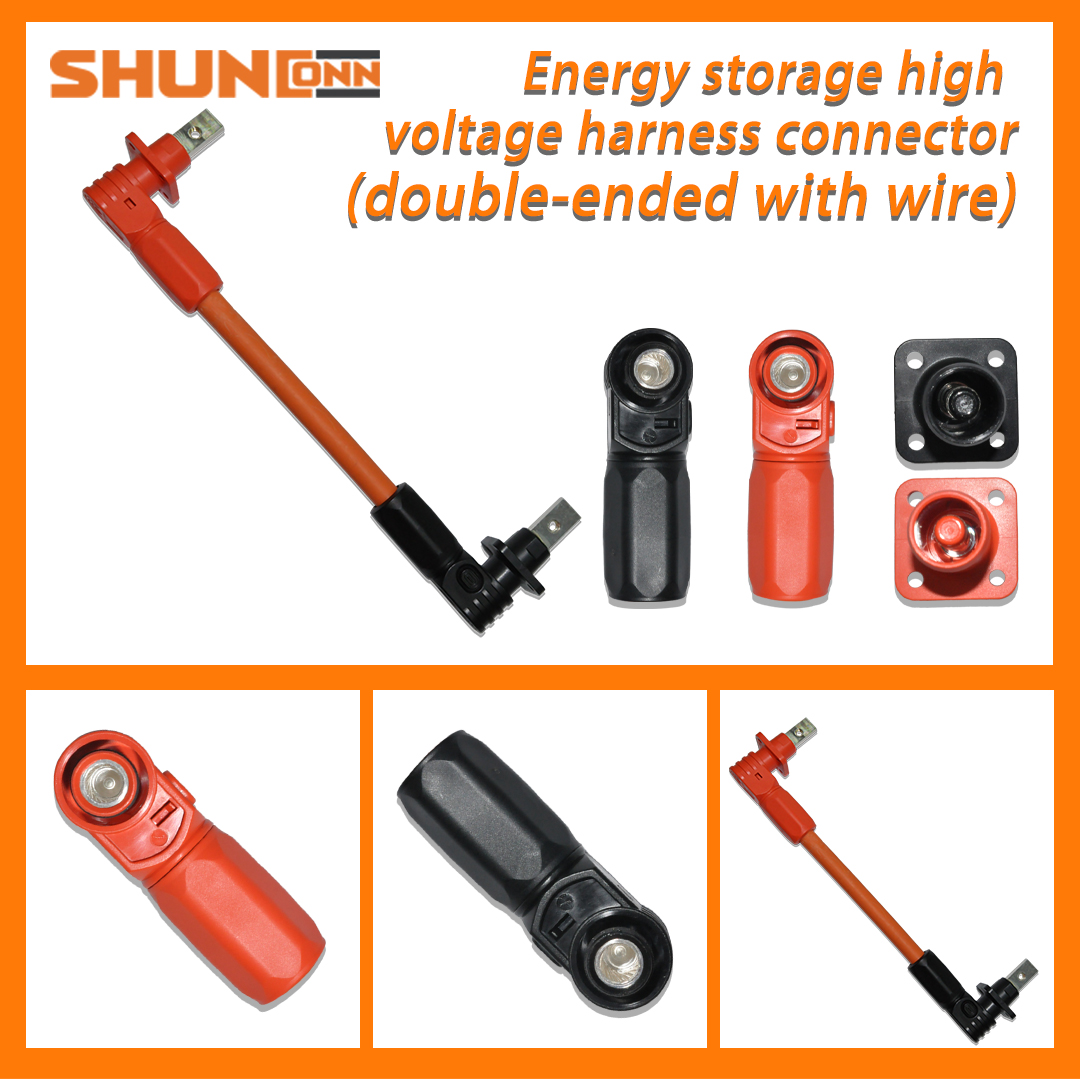

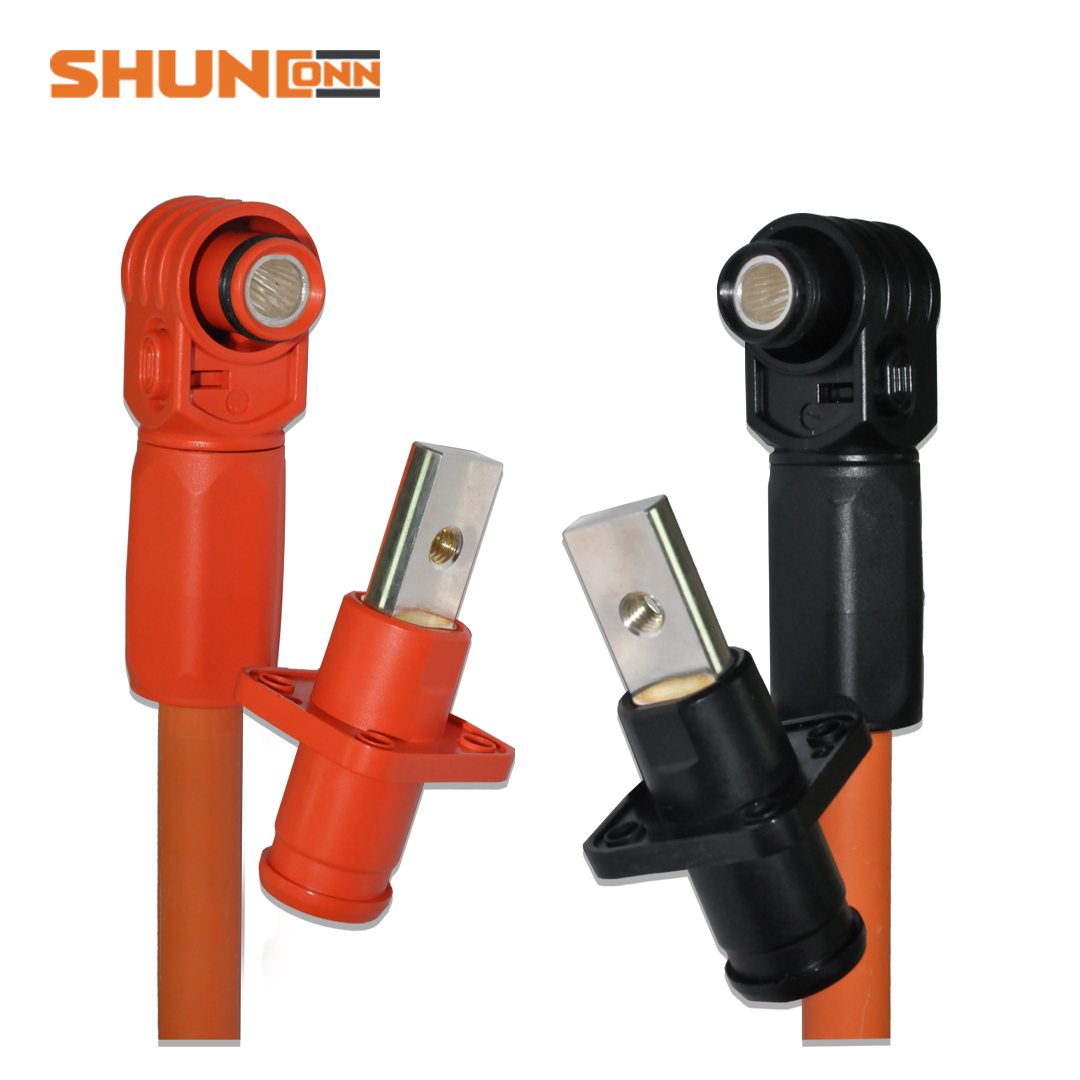

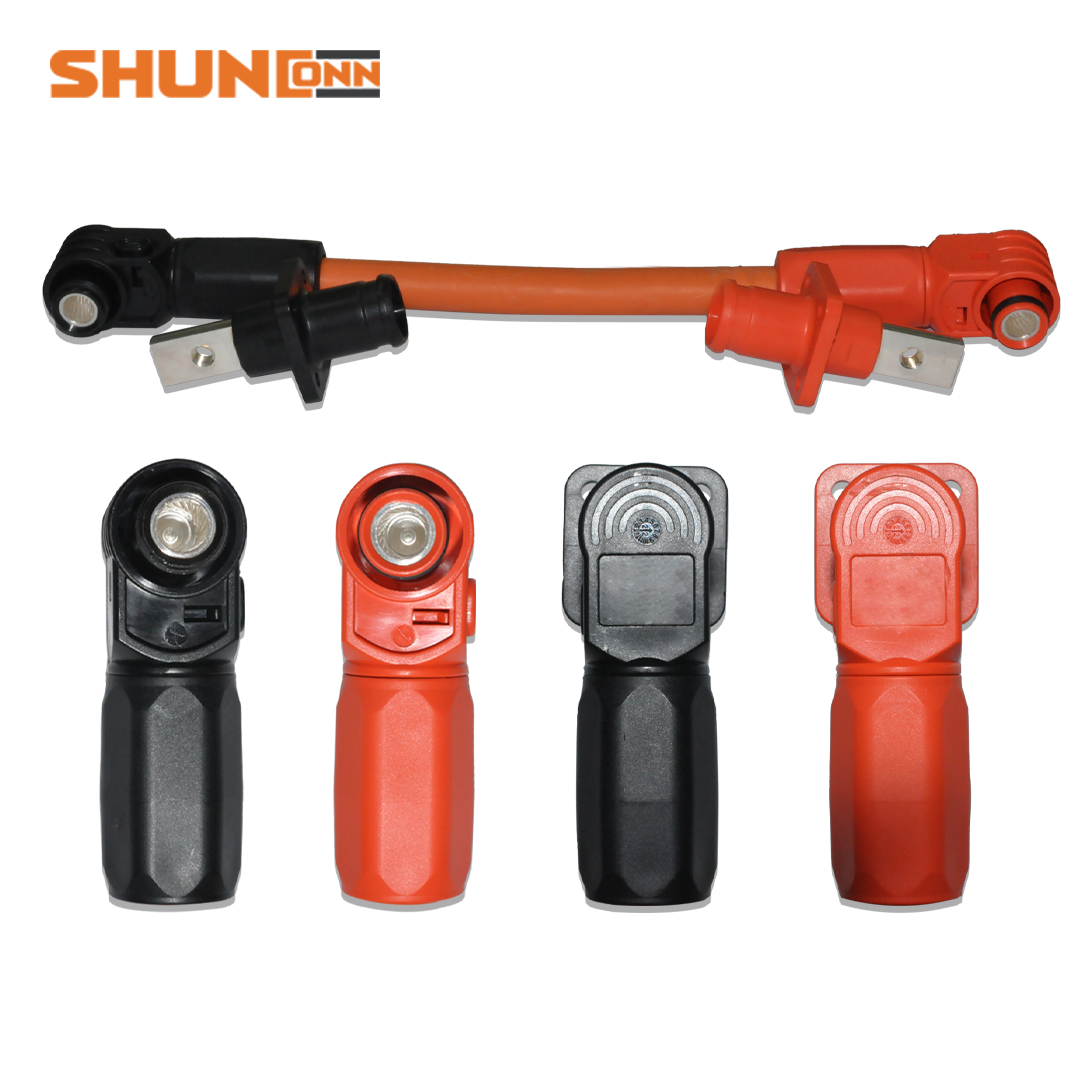

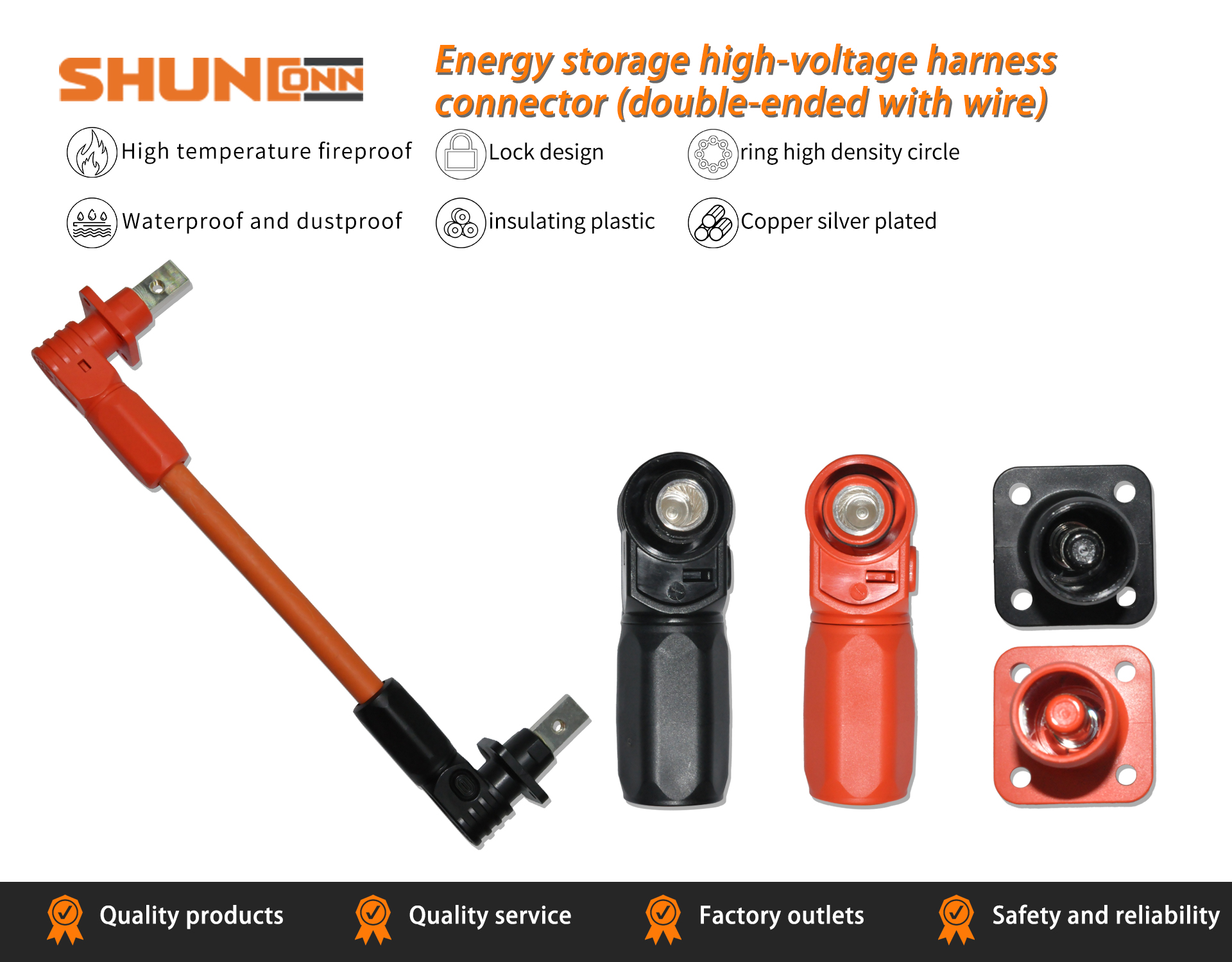

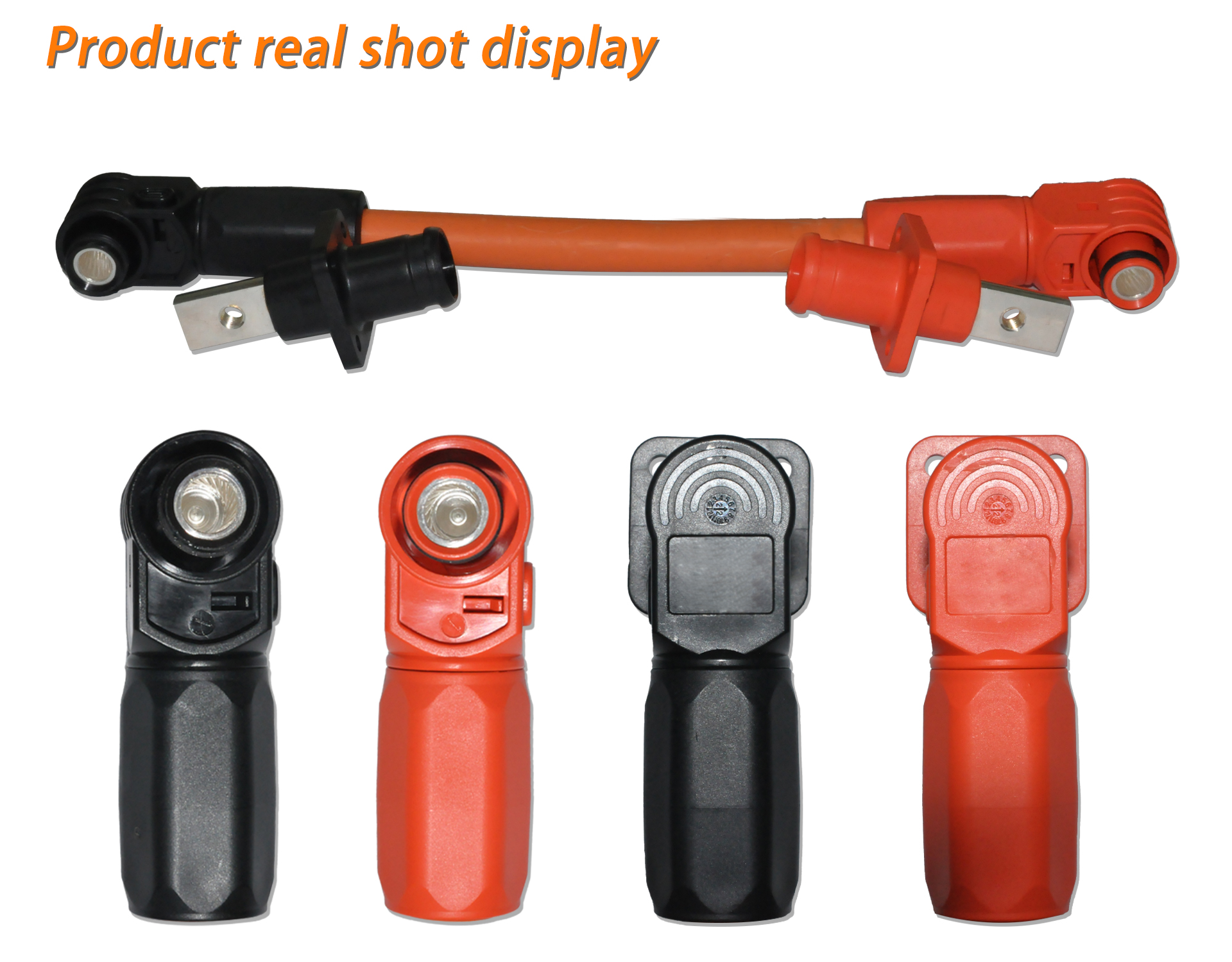

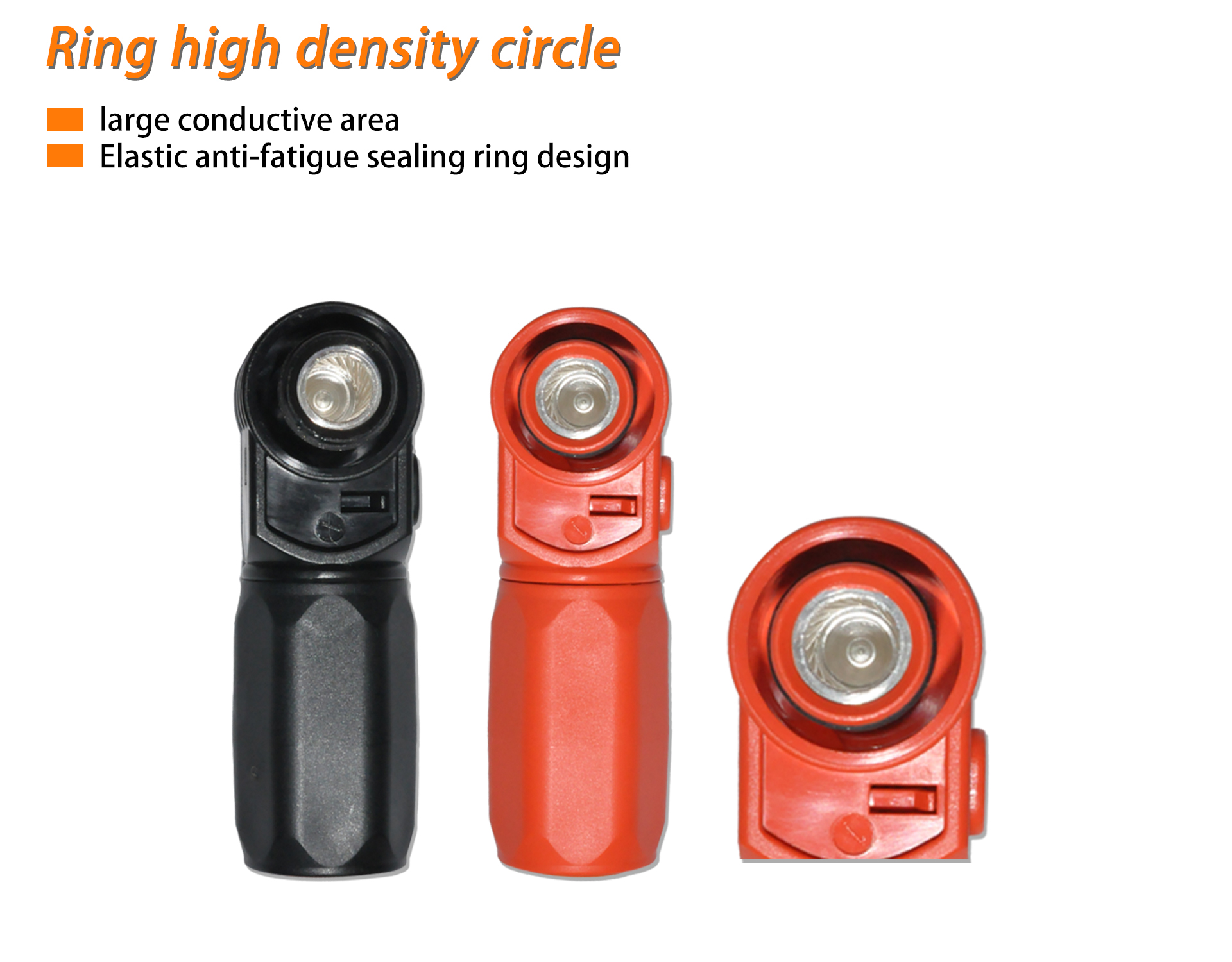

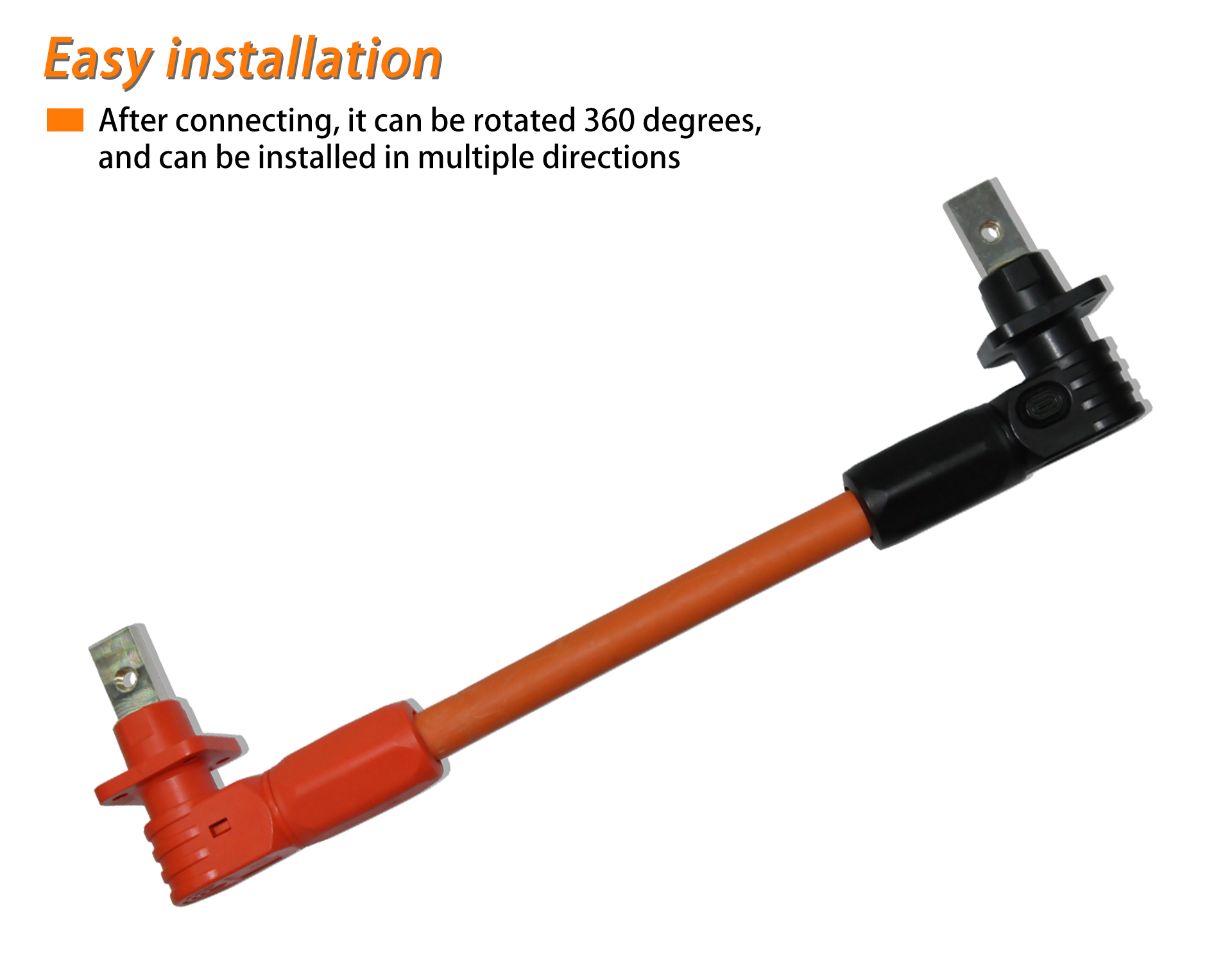

Name of product : Energy storage high voltage harness connector (double-ended with wire)
shell material : Polyamide 66
making process : Precision Injection
waterproof level : IP67
Current and voltage : 120A/300A 1500VDC Max
Wiring specification : 16/95mm2
usage count : >2000 times
Pin size : Φ8
contact material : Copper silver plated
Fire-proof level : UL94v-0
temperature range : -40-105°
Contact impedance : 0.05MΩ Max
Dielectric strength : ≥3000VAC/min
Anti-shedding force : ＞200N
