Production status: in mass production
If you want to know more about this product, please contact us.

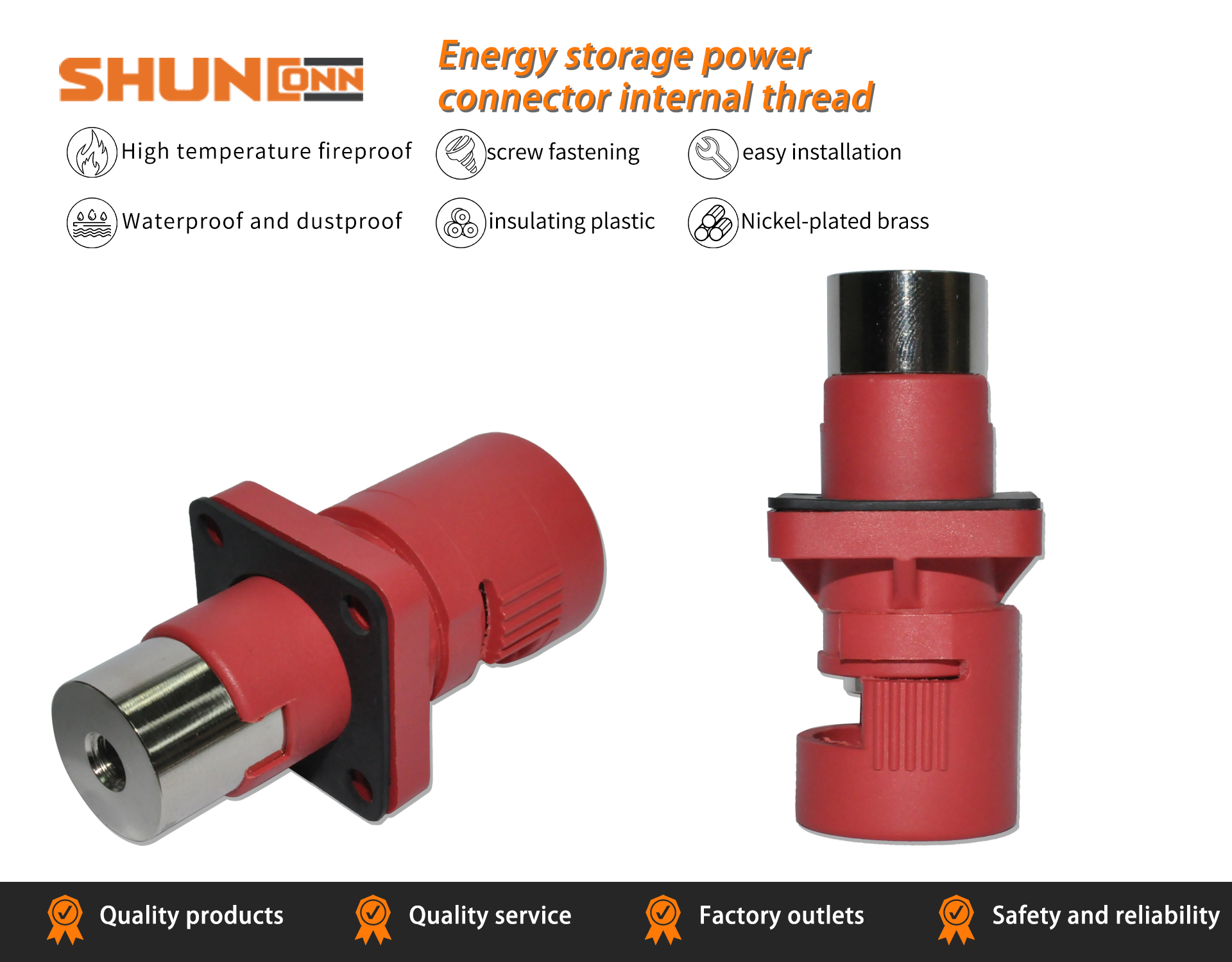

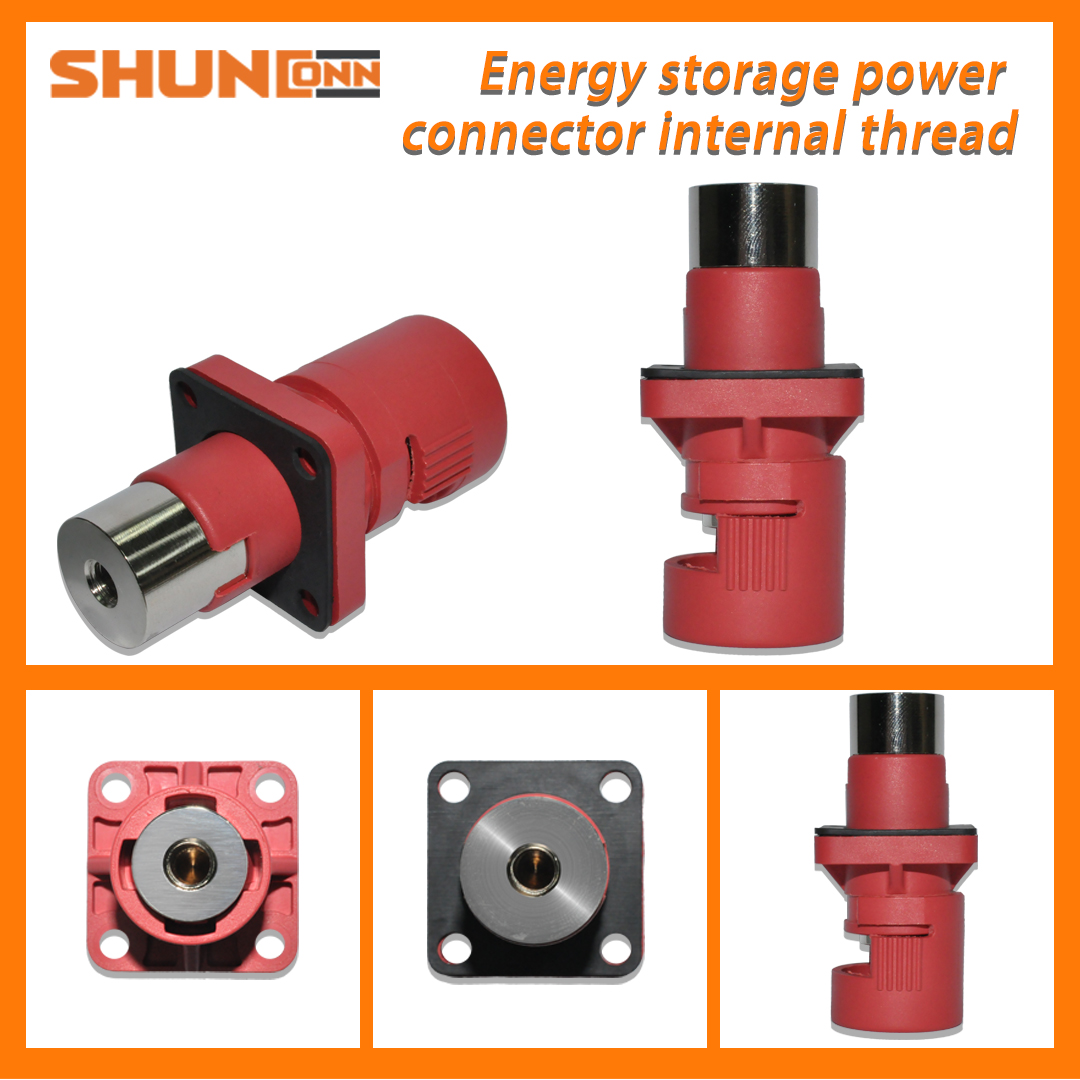

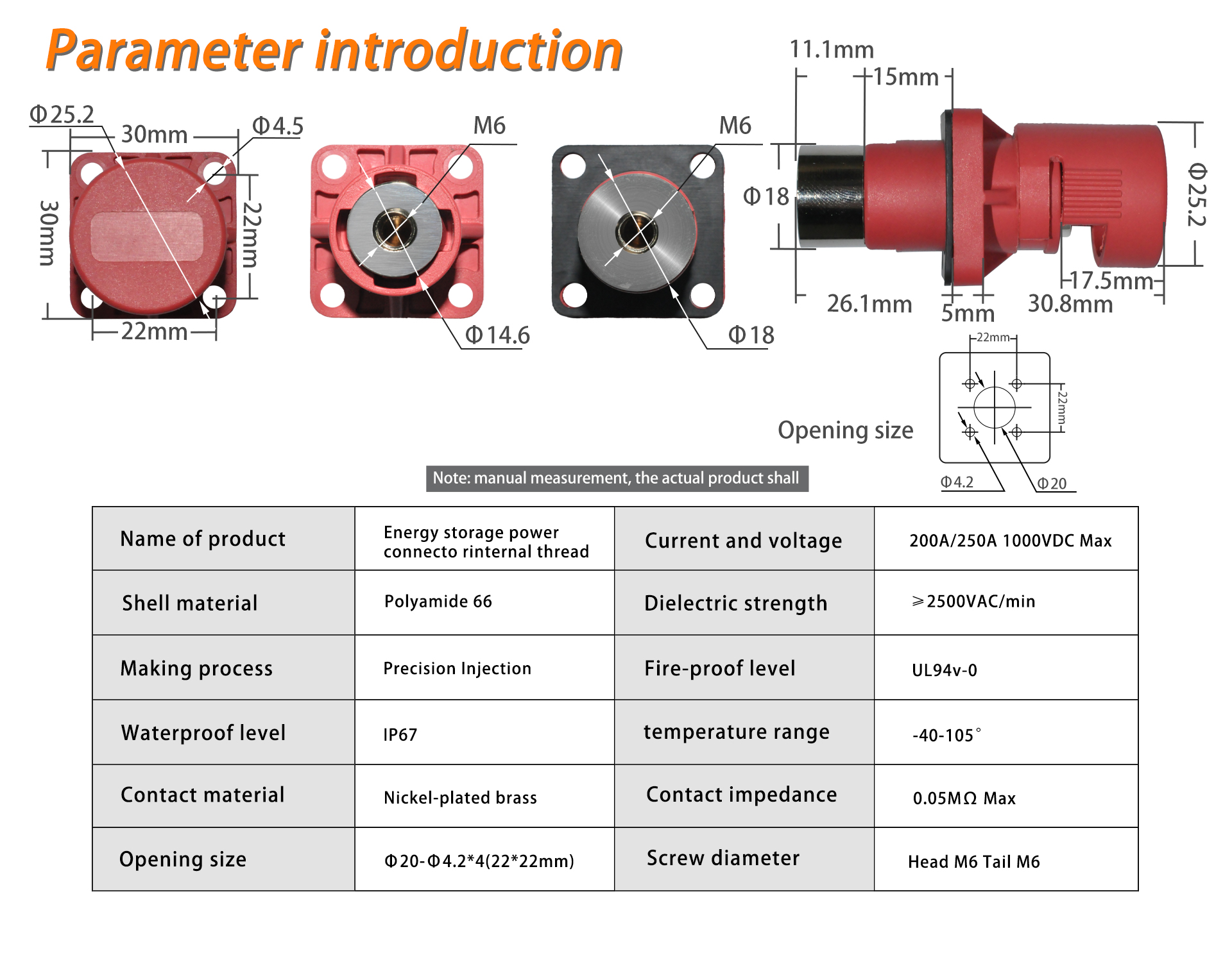

Name of product : Energy storage power connector internal thread

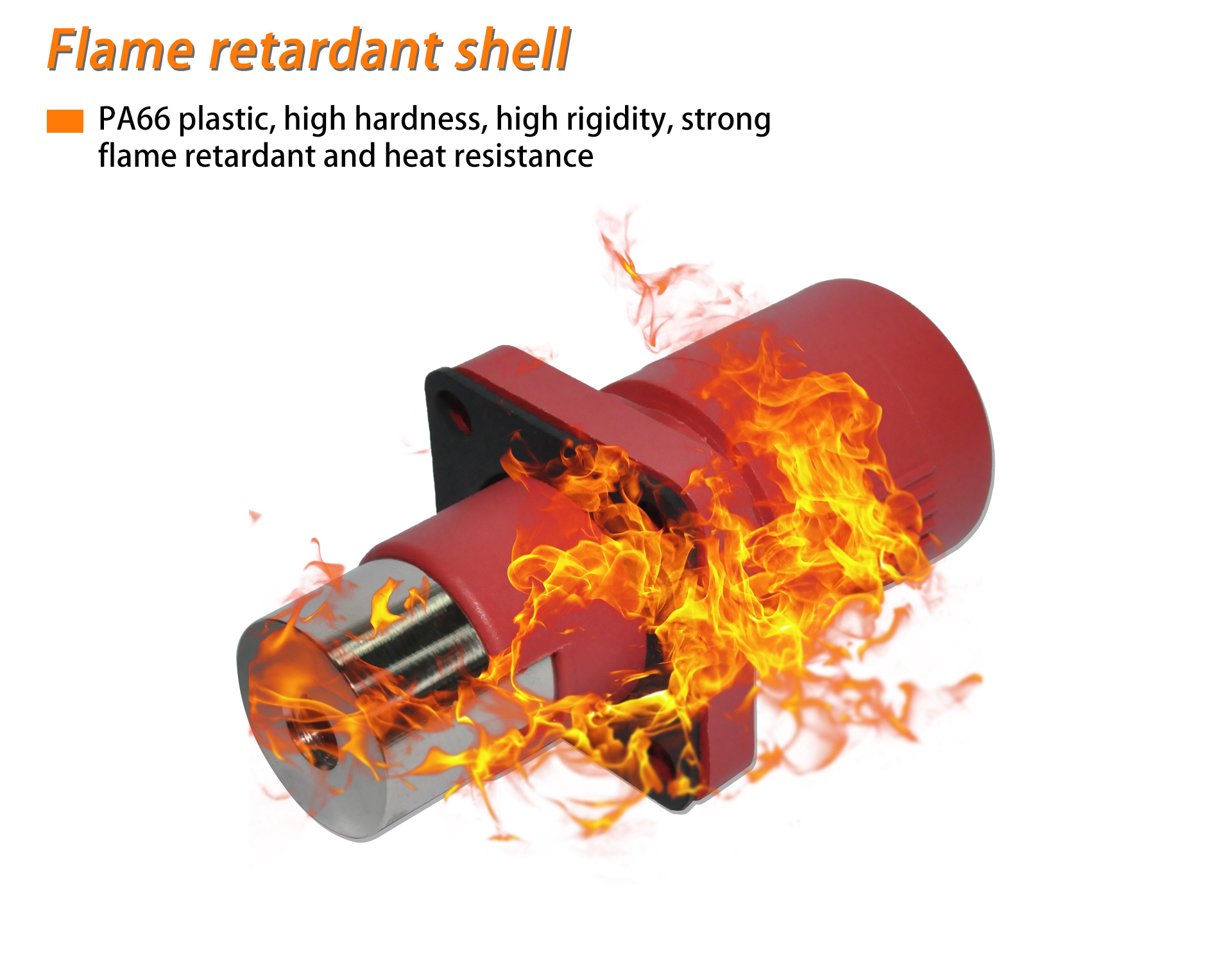

shell material : Polyamide 66
making process : Precision Injection
waterproof level : IP67

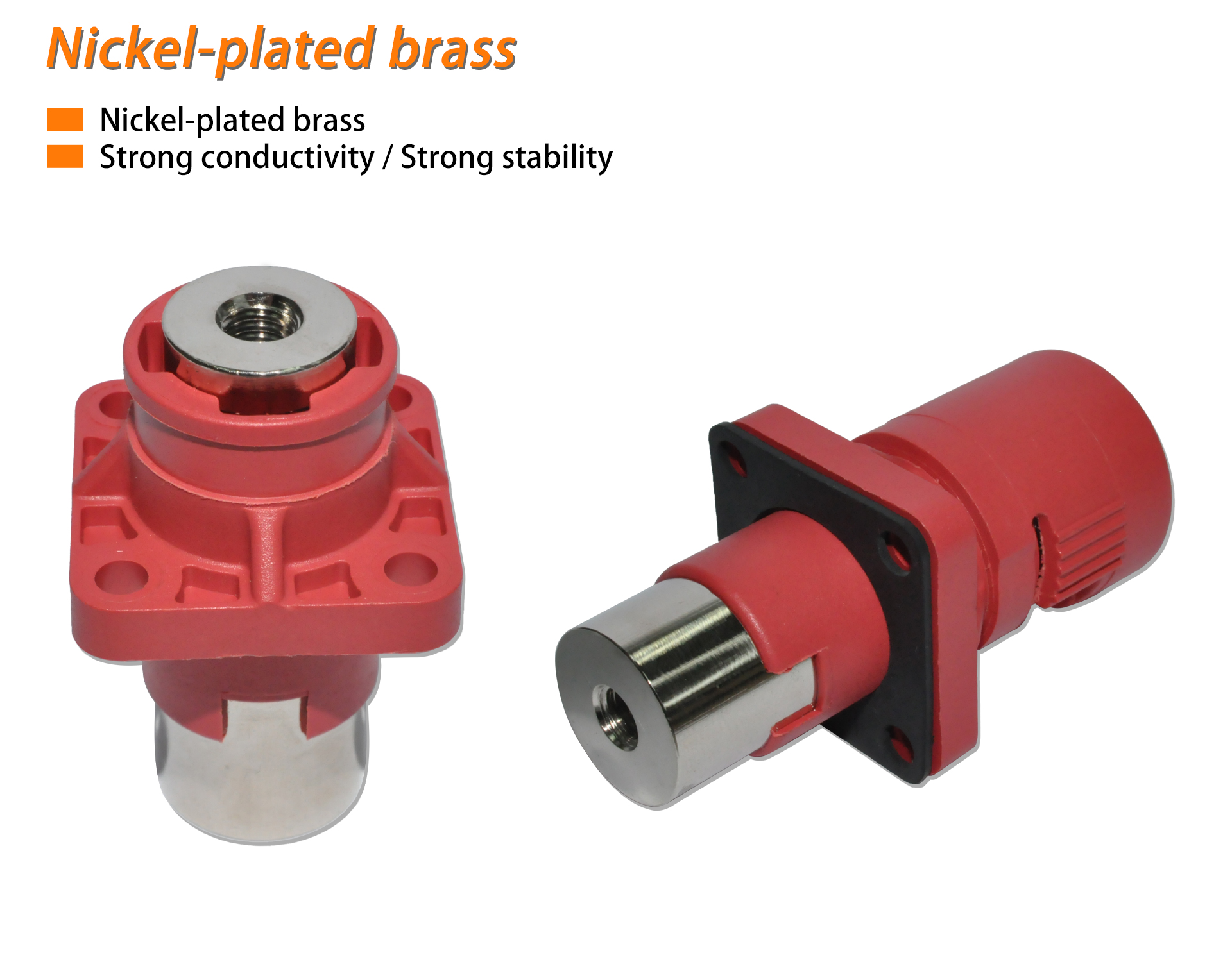

contact material : Nickel-plated brass
Opening size : Φ20-Φ4.2*4(22*22mm)
Current and voltage : 200A/250A 1000VDC Max
Dielectric strength : ≥2500VAC/min
Fire-proof level : UL94v-0
temperature range : -40-105°
Contact impedance : 0.05MΩ Max

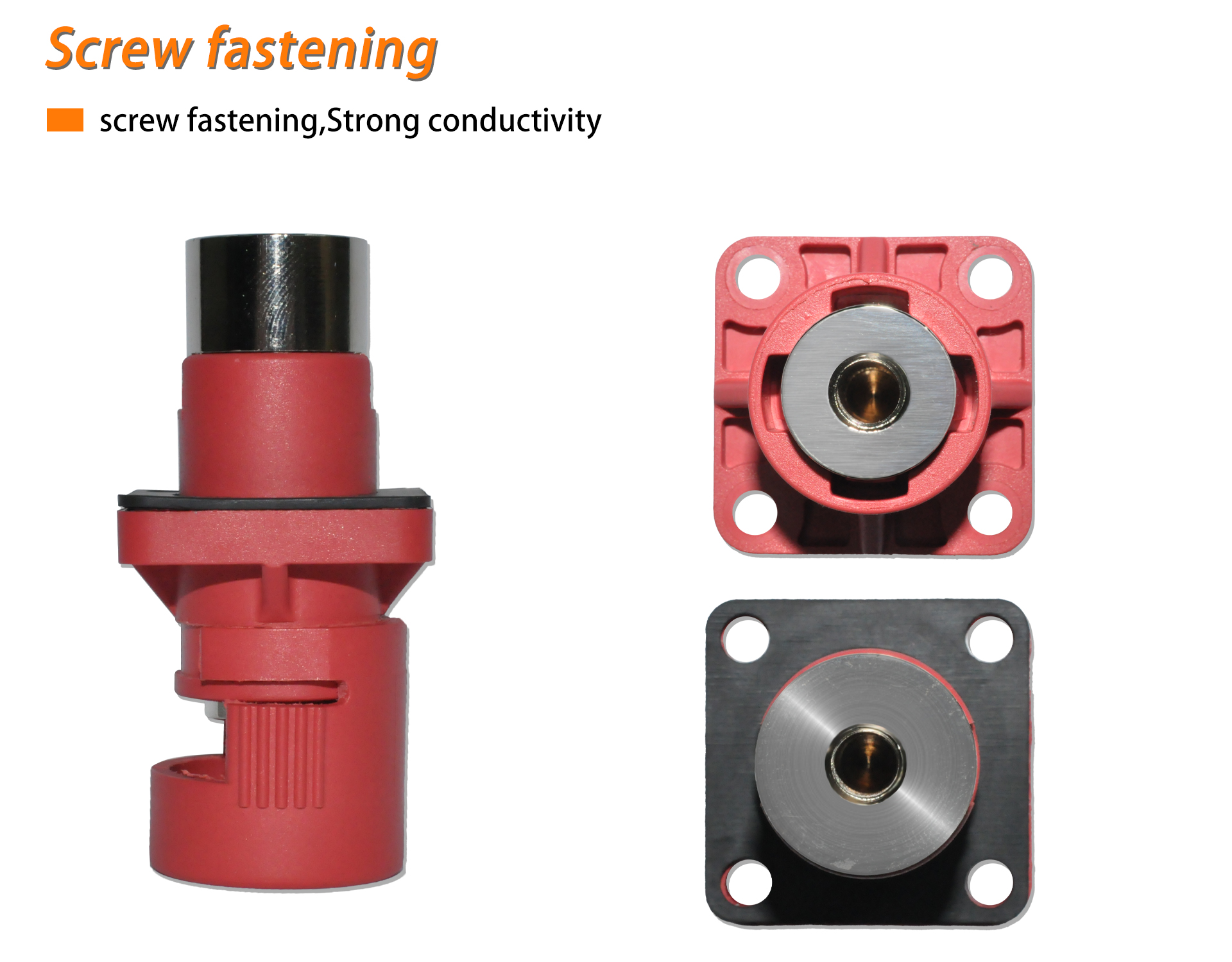

Screw diameter : Head M6 Tail M6

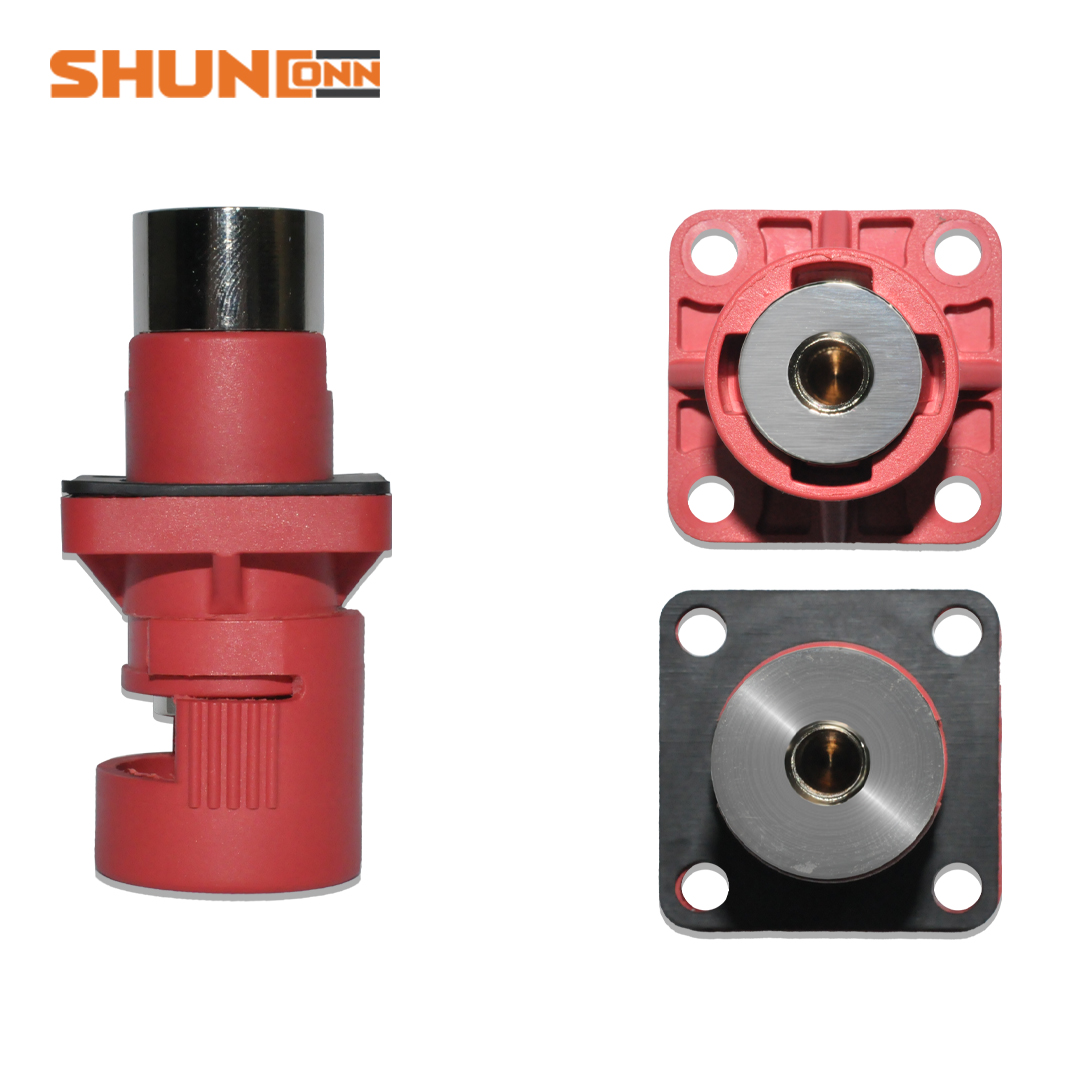

主图 (3).jpg "Shunconn Energy storage power connector 200A/250A internal thread M6/M6(red)")
