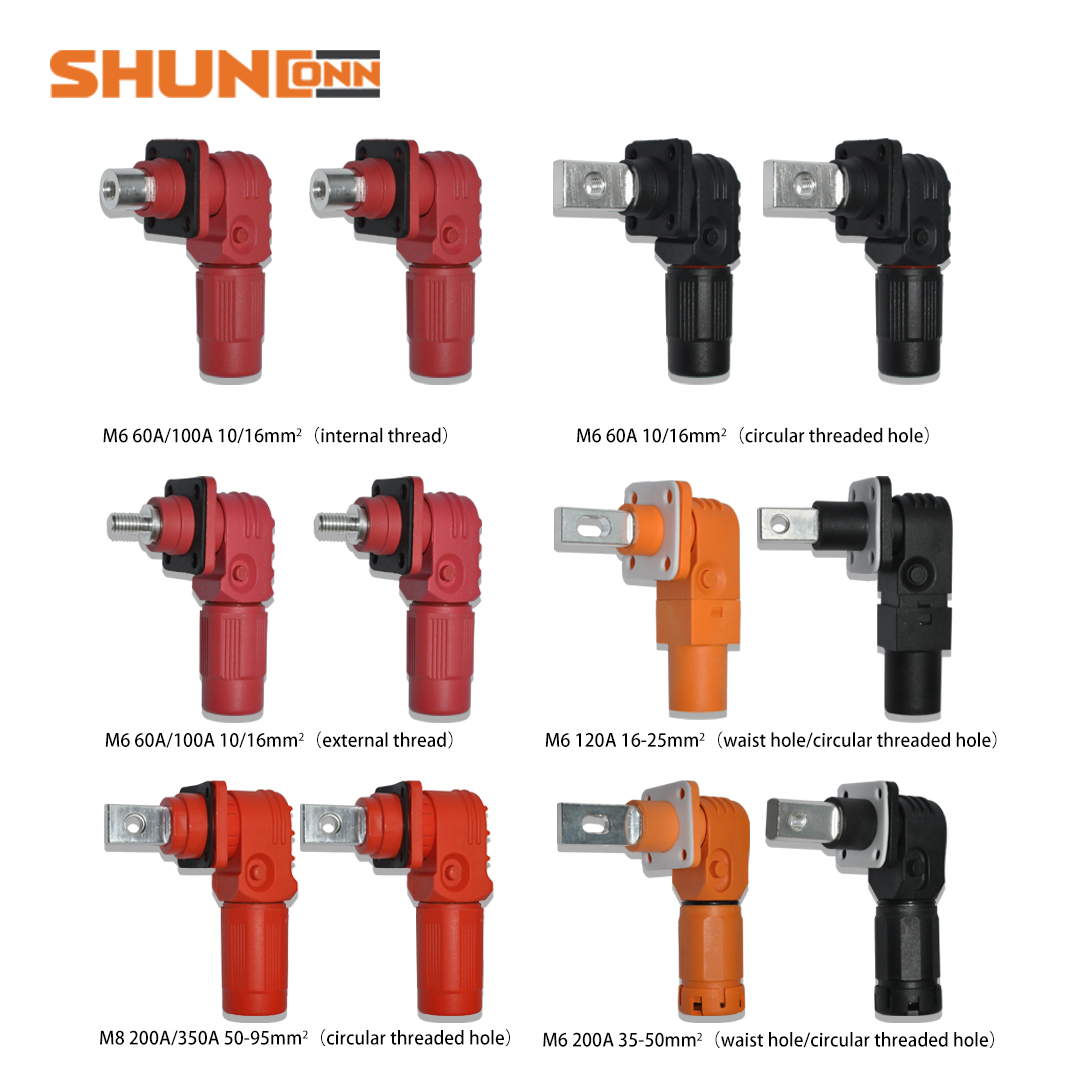

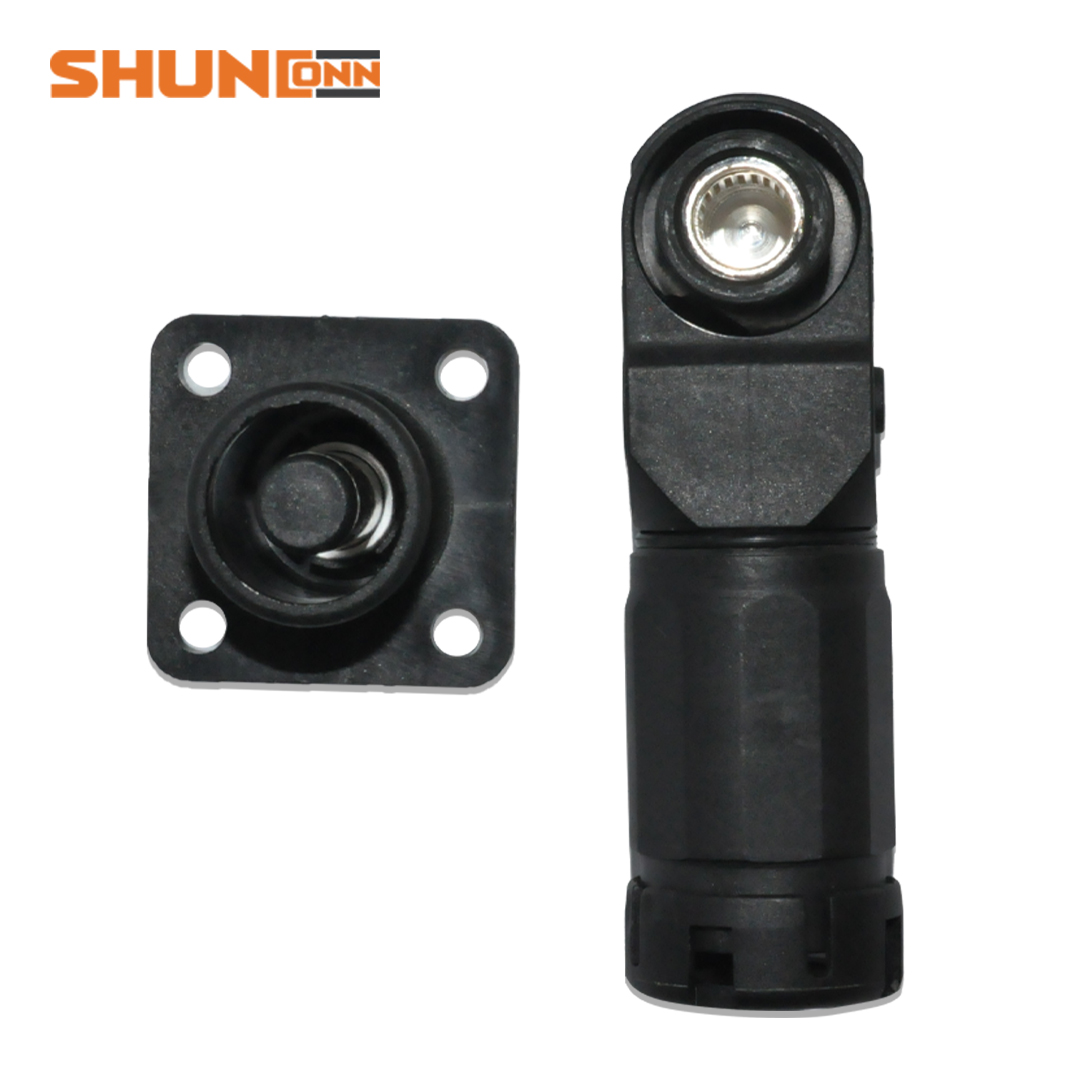

Shunconn Energy Storage Cabinet Connector 200A Round thread Φ8

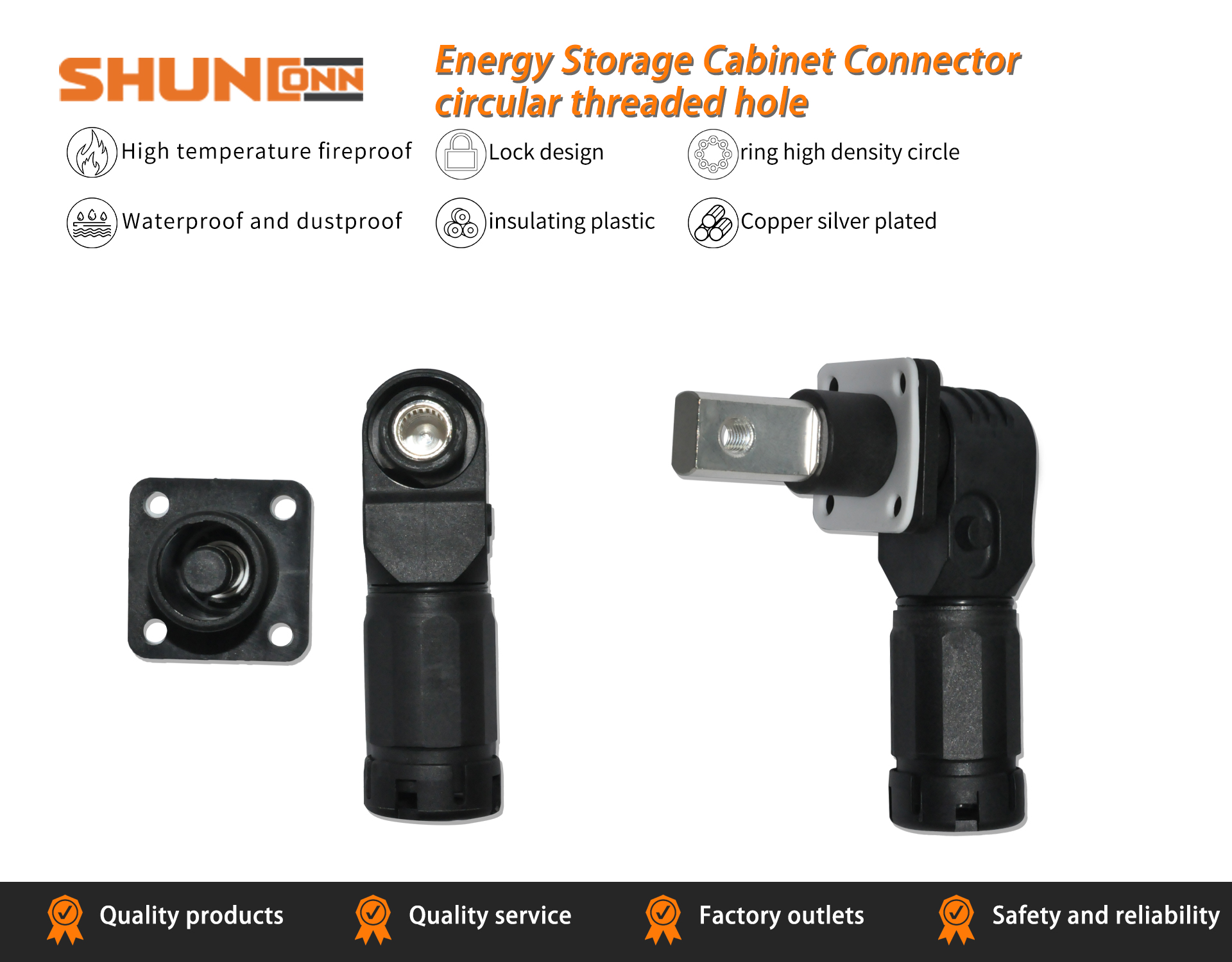

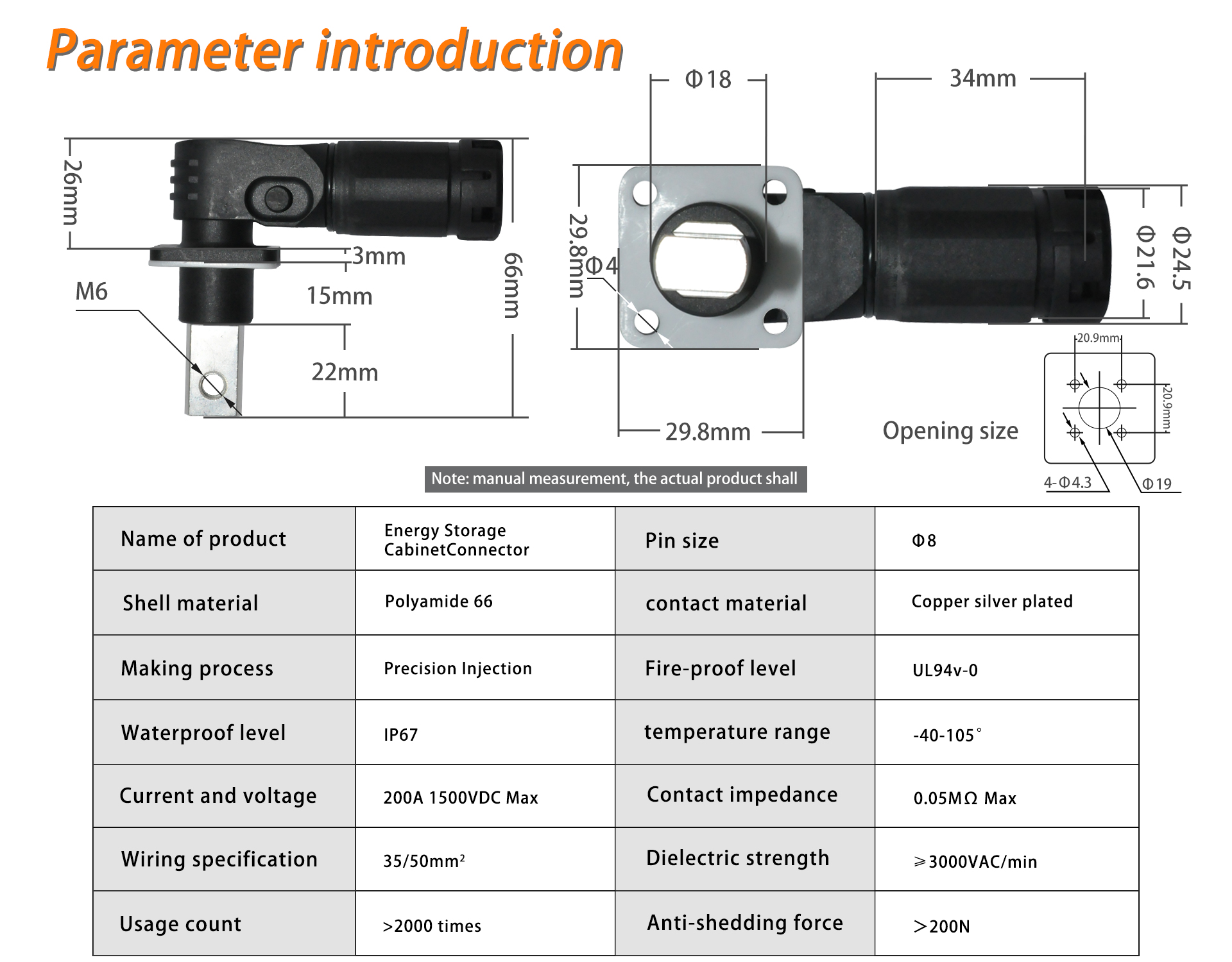

Name of product : Energy Storage Cabinet Connector

shell material : Polyamide 66

making process : Precision Injection

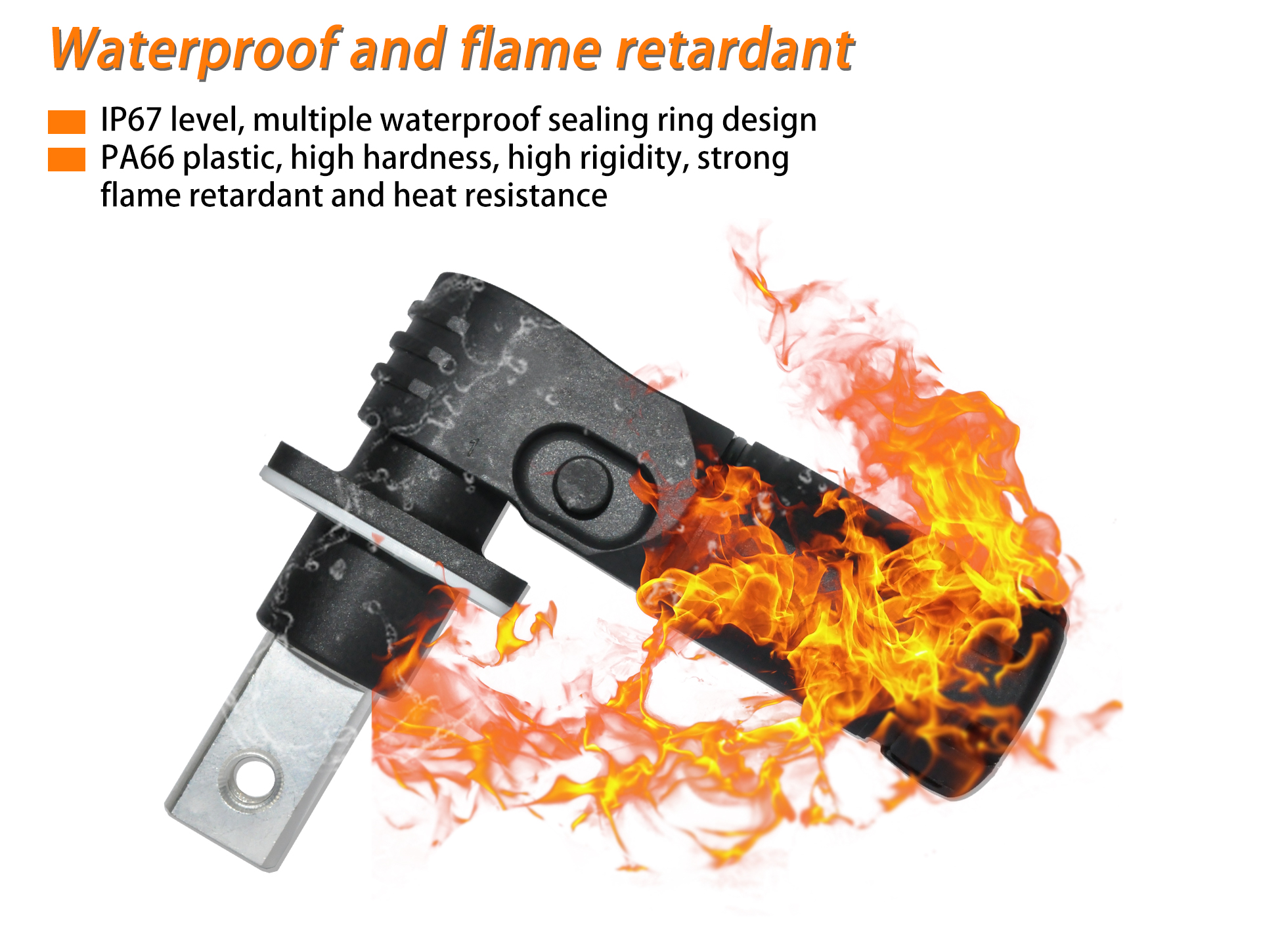

waterproof level : IP67

Current and voltage : 200A 1500VDC Max

Wiring specification : 35/50mm²

usage count : >2000 times

Pin size : Φ8

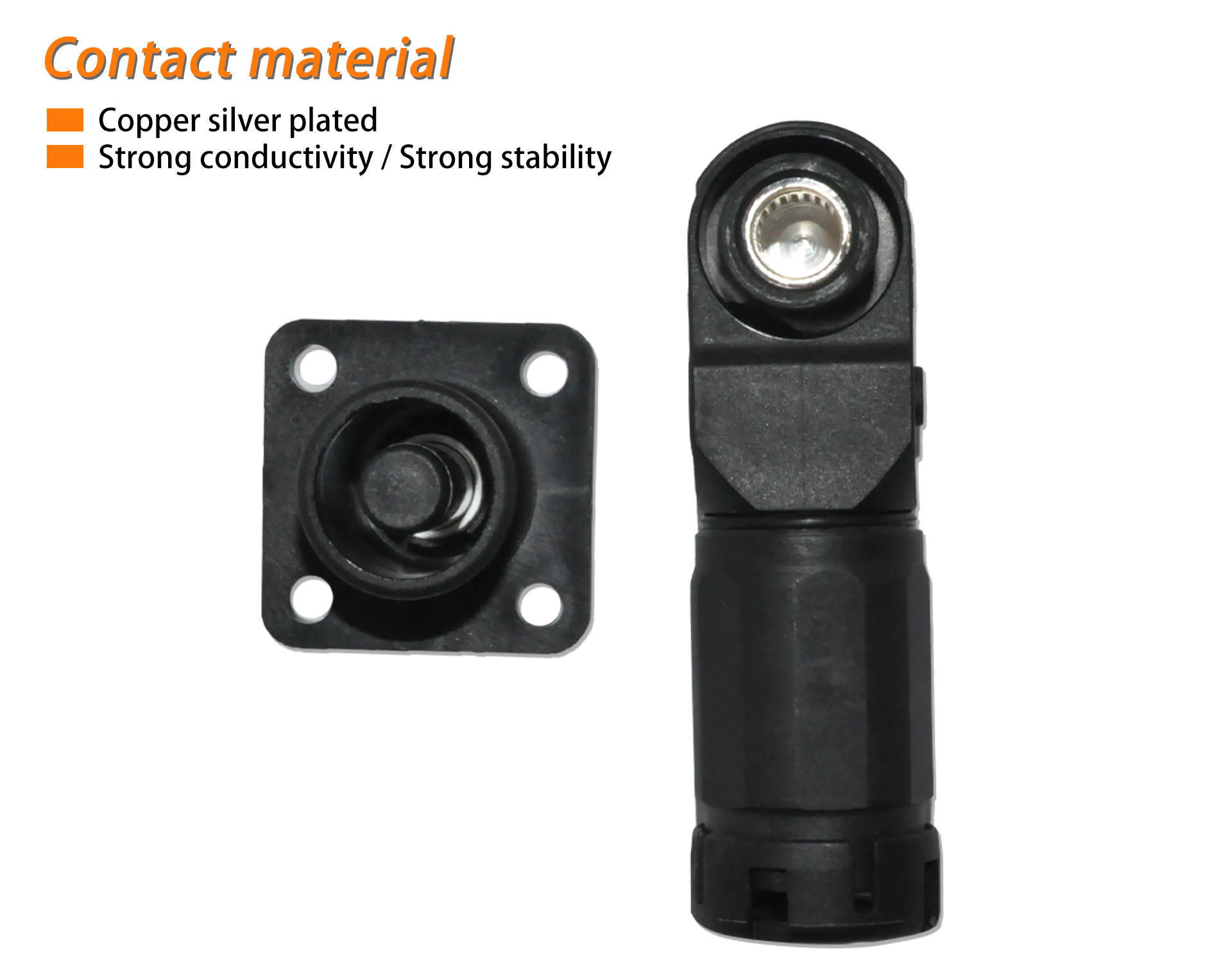

contact material : Copper silver plated

Fire-proof level : UL94v-0

temperature range : -40-105°

Contact impedance : 0.05MΩ Max

Dielectric strength : ≥3000VAC/min

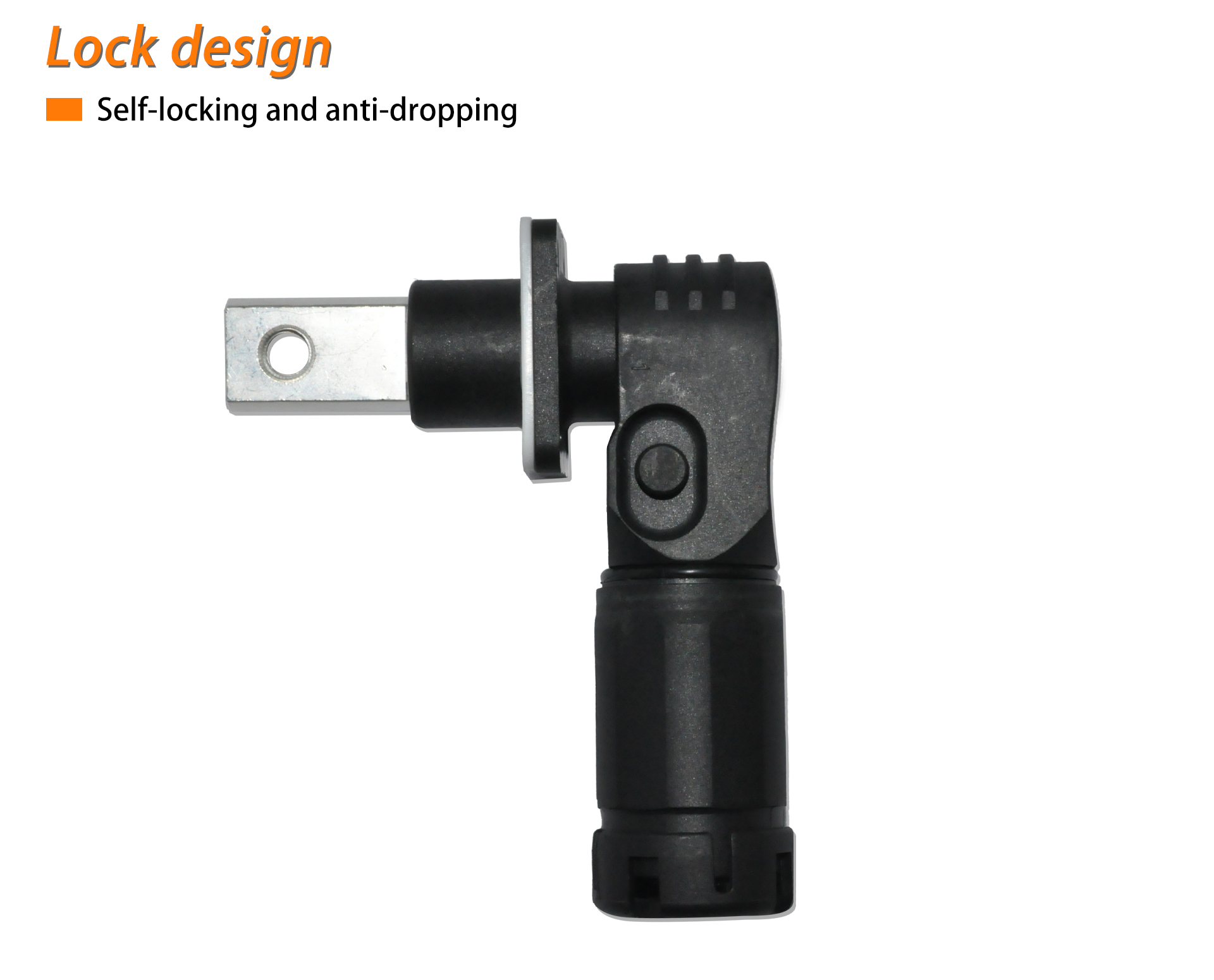

Anti-shedding force : ＞200N
