With the acceleration of the pace of global energy transition, the pace of large-scale photovoltaic power plant construction is also accelerating. From a few years ago, the 100-megawatt power station has now emerged a gigawatt "photovoltaic giant." These large power stations not only occupy a vast area, but also greatly improve the complexity of the electrical system. Among them, the reliability and safety of power equipment is particularly critical.
As an important electrical connection component of photovoltaic power stations, the performance of branch connectors directly affects the stable operation of the entire system. SHUNKONN Technology, as a professional manufacturer of solar photovoltaic connectors, has launched the MCT10-4M4FPLN01 T-type 4 in 1 branch connector for the characteristics of large-scale photovoltaic power stations to escort power plant operation and maintenance.
The MCT10-4M4FPLN01 is SHUNKONN's flagship product, which is mainly used for cable branch connections of large photovoltaic power plants. It uses advanced design and manufacturing processes and has many outstanding performance indicators:
High voltage tolerance: Rated working voltage 1000V DC, can withstand higher system voltage, to provide a strong guarantee for the safe operation of the power station.

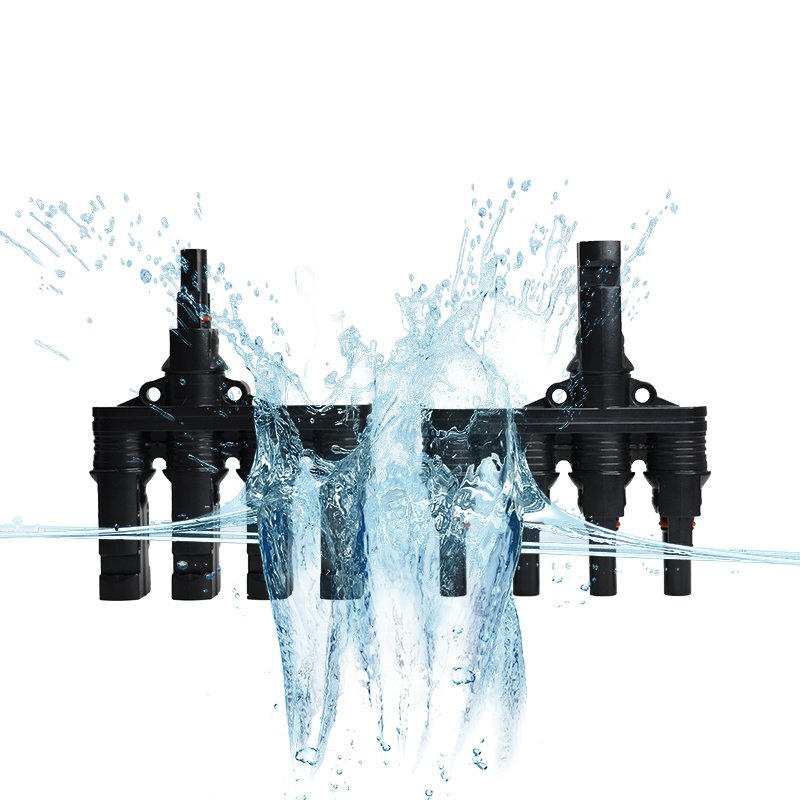

Super protection: The waterproof level is as high as IP68, and it can maintain good protection performance even in the harsh outdoor environment for a long time to avoid safety hazards such as leakage and short circuit. At the same time, it also passed the UL94-V0 flame retardant test, with excellent fire performance.
Reliable electrical conductivity: tinned copper conductor with contact resistance as low as 0.35 milliohm, greatly reducing power loss and ensuring efficient power delivery.
Safe and stable connection: Built-in embedded self-locking design, even under severe vibration or external impact can be reliably locked in, to avoid accidental disconnection of the joint.
Excellent weather resistance: Made of PPO (polyphenyl ether) polymer material, it can also withstand long-term exposure, rain, hail and other tests in harsh environments to ensure the service life of the connector.
In summary, the MCT10-4M4FPLN01 T-type 4-in-1 branch connector can be described as the "security guard" of large photovoltaic power plants. It can not only withstand high voltage and high current, but also has superior protection ability, which ensures the safety of power transmission, but also greatly improves the reliability and service life of the entire photovoltaic system.
In addition to excellent performance parameters, the MCT10-4M4FPLN01 also has many highlights in the structural design:

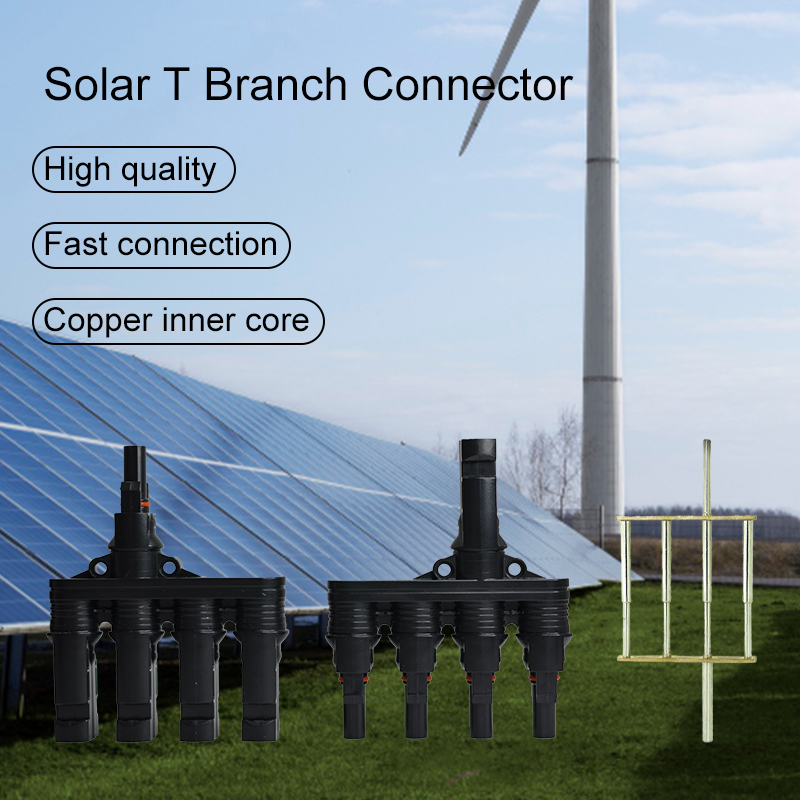

T-type 4-in-1 design: One connector can connect 4 cables at the same time, significantly reducing the wiring workload and improving the site construction efficiency. At the same time, the reduction in the number of connectors also reduces the risk of failure of the entire system.
Embedded self-locking: The connector adopts the embedded self-locking structure, which only needs to be simply inserted and removed when wiring, without additional fixing measures, which greatly facilitates the field construction operation.
Modular design: the connector body is separated from the seal, which is convenient for on-site replacement and maintenance and greatly reduces the maintenance time.
Compact and lightweight: the overall size is compact, the weight is only 1.2kg, easy to install and transport, suitable for large-scale applications in large power stations.
It can be said that MCT10-4M4FPLN01 has excellent performance in safety, reliability, construction convenience and other aspects, and fully meets the harsh requirements of large-scale photovoltaic power stations for electrical connectors.
