"MC415-1M1FPSNXX01 Efficient connection, optimized performance: 1500V 30A IP68 solar PV connector"
Why use 1500V 30A IP68 solar photovoltaic connector PPO material stamping inner core?
High voltage and current carrying capacity: The connector is capable of supporting voltages up to 1500V and currents up to 30A, which is suitable for high power solar systems and can handle large currents and voltages to meet the needs of high power solar systems.

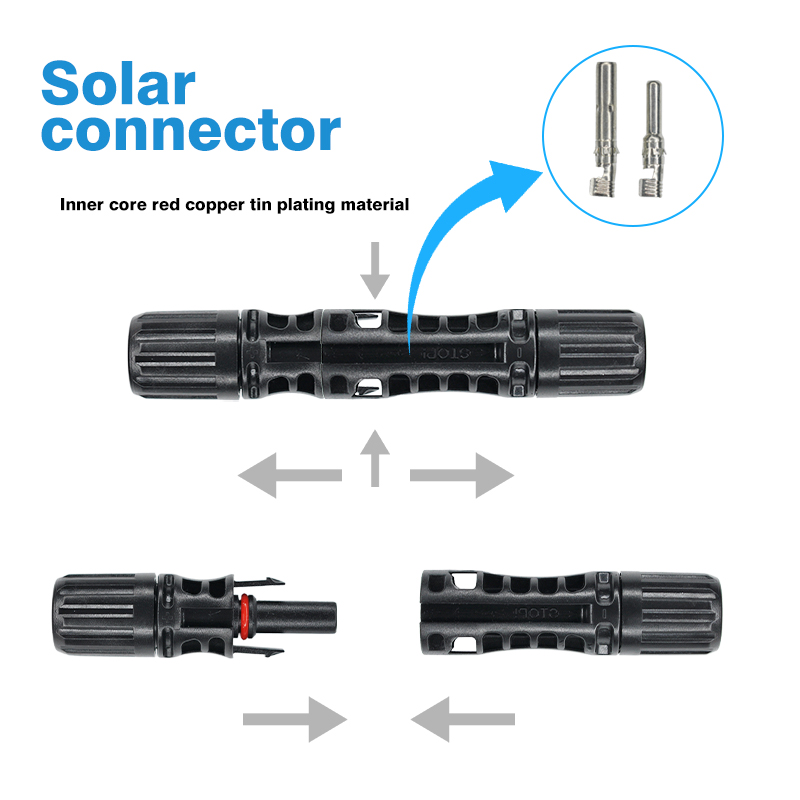

Stamping inner core: The inner core adopts the stamping process to ensure good electrical contact performance and low contact resistance, reduce energy loss and improve system efficiency.
High protection level: IP68 protection level ensures that the connector has extremely high dust and water resistance, suitable for outdoor use, and can effectively protect the internal circuit from dust, water and other external factors.
Durability and chemical resistance: PPO material has good chemical resistance and weather resistance, and can resist the influence of ultraviolet light and other environmental factors, thereby improving the service life and reliability of the connector.
Flame retardant performance: PPO material usually has good flame retardant performance, through the UL94-V0 flame retardant grade certification, increasing the safety of the system.
Wire end specification adaptability: 2.5mm²-6mm² wire end specification adaptability, so that the connector can adapt to different specifications of the cable, improve the flexibility and convenience of installation.
Wire end design: suitable for 2.5mm²-6mm² wire end specifications, so that the connector can adapt to different specifications of the cable, improve the flexibility and convenience of installation.
Environmentally friendly materials: PPO material is an environmentally friendly material, does not contain harmful substances, meets environmental standards such as RoHS, and helps to reduce the impact on the environment. It has an IP68 protection rating, which means that it provides the highest level of dust and water resistance, suitable for outdoor use, and can effectively protect internal circuits from dust, water and other external factors.
Reduced shadow effect: The design of the connector reduces the shadow area on the solar panel, minimizing the impact of shadow on the efficiency of solar power generation.
These advantages make 1500V 30A IP68 solar photovoltaic connector PPO material stamping inner core end plays a very important role in the solar system, providing high efficiency, high safety and high reliability connection solutions. Designed to ensure a safe and reliable connection between solar panels and inverters, battery storage systems or other PV system components, this connector is suitable for a variety of solar applications, including large-scale solar PV systems.
Using a solar photovoltaic connector wire end usually involves the following steps:
Preparation: Ensure that the solar photovoltaic system is turned off and no current is flowing to ensure safety.
Stripping: Use a wire stripper to peel off the outer skin of the cable to expose a certain length of wire. Usually, the stripping length needs to be determined according to the specifications of the connector.
Insert wire: Insert the stripped wire into the wire end of the connector, ensuring that the wire is fully inserted inside the wire end of the connector.
Crimping: Use wire crimping pliers to press the wire end of the connector to ensure that the connection between the wire and the wire end is firm and there is no loose phenomenon.
Check the connection: Check that the connection between the wire and the wire end is strong and ensure that there is no loose or exposed wire.
Connect to the solar panel: Connect the cable with the wire end to the corresponding port of the solar panel, ensuring that the connection between the connector and the solar panel port is secure.
Fixed connection: As required, use screws or jigs to fix the connector on the solar panel to ensure the stability and reliability of the connection.
Turn on the system: After completing all connections, you can turn on the solar photovoltaic system again and check whether the system is working properly.
When using the wire end of the solar photovoltaic connector, the manufacturer's guidance and recommendations should be followed to ensure the correct and safe use of the connector. In addition, the status of the connector should be checked regularly to ensure its long-term stability and reliability.
