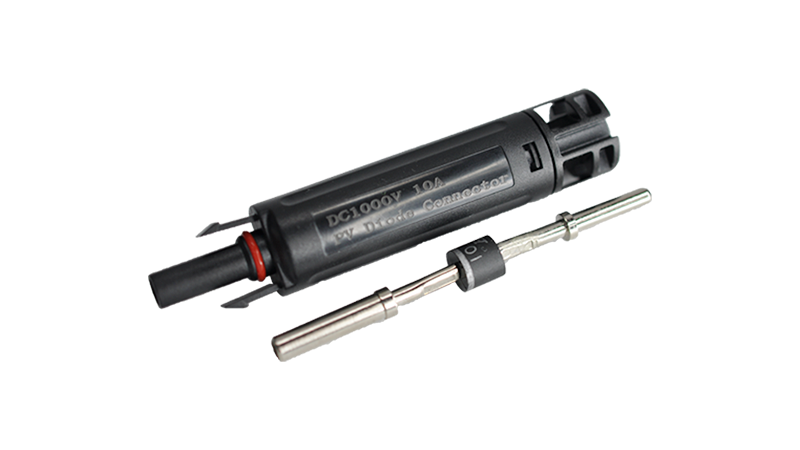

When it comes to connectors for solar systems, diode connectors play a crucial role. A solar diode connector is an electrical connection device designed for solar photovoltaic systems to connect circuits between solar panels, between panels and inverters, and between other system components.
The following are some details of the solar diode connector:
1. Design and construction: Solar diode connectors usually adopt a modular design and are composed of two parts: plug and socket. The plug is connected to the solar panels, while the socket is connected between the panels or between the panels and the inverter. Connectors are designed with high voltage and current requirements in mind and are durable and reliable.
2. Efficient electrical connection: Diode connector is a high-performance connection solution designed for solar photovoltaic systems. It provides a reliable electrical connection that ensures efficient energy transfer between solar panels and other system components.
3. High rated voltage: The rated voltage of the connector is 1000V, which can meet the needs of various scale solar projects. Whether you're building a home photovoltaic system or a large commercial solar power plant, diode connectors work reliably.
4. High quality material: PPO insulation material and tinned copper conductor are used for connectors to ensure excellent electrical insulation and conductivity. This design minimizes energy loss and improves the energy efficiency of solar systems.
5. Strong temperature resistance: The diode connector operates over a wide temperature range, from -40 ° C to +95 ° C, enabling it to work in a variety of climatic conditions. Whether it is cold winter or hot summer, the connector can maintain excellent performance.
6. High security: The connector meets the requirements of DCII safety level and has passed strict testing and certification. It has fire and arc protection to ensure safe operation under high voltage and current conditions.
7. Waterproof and dust-proof: The diode connector has IP68 waterproof performance, which can effectively resist the erosion of humidity, rainfall and bad weather. This waterproof design guarantees the reliability and durability of the connector in outdoor environments.
8. Solid connection: The connector uses a multi-point connection system to ensure a solid connection between the solar panel and other equipment. In addition, the connector is equipped with an embedded self-locking system to maintain a strong connection in high vibration environments.
9. Current: Diode connectors offer a variety of rated current options, including 10A, 15A, 20A and 30A, to accommodate solar systems with different power needs.
10. Easy installation: The connector has easy to use installation features, making the installation process more convenient. In addition, the structural design facilitates daily maintenance and overhaul work, saving time and effort.
Solar diode connectors are ideal for building reliable, efficient solar photovoltaic systems. Whether you are in the home, commercial or industrial sector, our connectors deliver superior performance and reliability.
Choose solar diode connectors to bring more efficient and sustainable energy solutions to your solar projects!
If you need more information or have any questions, please feel free to contact us.
