The correct crimping method of solar photovoltaic system connector terminals - a guide for the use of photovoltaic crimping pliers

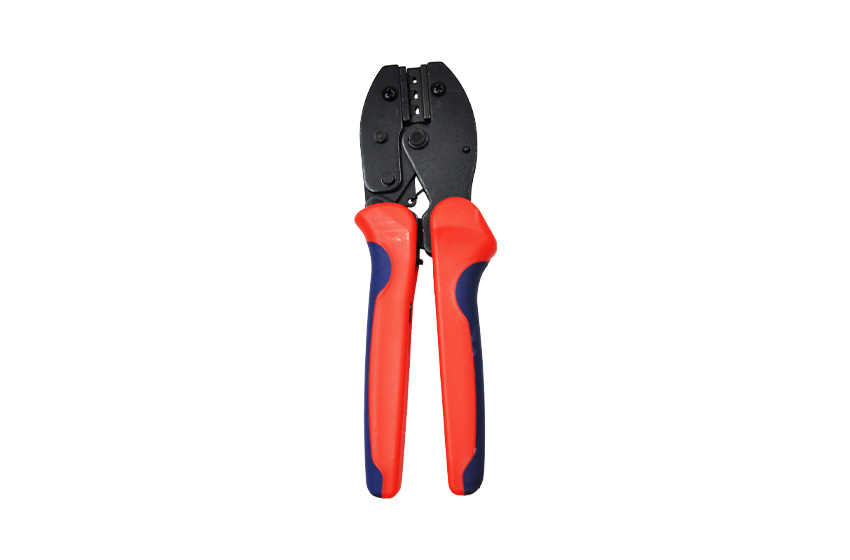

Solar photovoltaic system connector terminal crimping is a very important step, and photovoltaic clamp is designed for this tool. It is a special tool for crimping the terminals of solar photovoltaic connectors to ensure a solid and reliable electrical connection. Today, we will share the correct use of photovoltaic crimping pliers to help you get to the essence of it!
When using photovoltaic crimper, the correct operation method and precautions are very important to ensure the safety and reliability of the connector. The following are the general steps and precautions for using photovoltaic crimps:
Safety measures: Make sure you have a suitable photovoltaic clamp and check its appearance for damage. Wear appropriate personal protective equipment, such as gloves and glasses.
Work area cleaning: Ensure that the work area is clean and tidy, and remove debris and other obstructions.
Avoid overheating: Avoid overuse or continuous use for too long to prevent the tool from overheating.
Power off operation: Before performing any work related to electrical connection, it is important to power off the photovoltaic system or associated power supply to reduce the risk of electric shock.
Prepare the connector and wire: Insert the connector and peel off a small section of wire insulation as needed.
Correct use of wire clamp: Familiar with the design and use of wire clamp, follow the manufacturer's instructions to use the tool correctly, avoid excessive force or use of the wrong clamp head.
Verify that connectors and wires match: Ensure that the specifications and types of connectors and wires match, and avoid using connectors that do not match.
Adjust the crimping clamp: Adjust the crimping position on the photovoltaic crimping clamp according to the connector size.
Crimp operation: Insert the wire into the terminal hole of the connector, ensuring that the wire is fully into the hole. Place the clamp head of the photovoltaic crimper above the connector terminal and gently apply enough pressure downward to ensure a good electrical connection.
Handle stripped wires with care: Handle stripped wire ends with care to avoid touching exposed wires.
Follow the manufacturer's instructions: Carefully read and follow the instructions and safety instructions provided by the manufacturer of the crimper.
Check the connection: After crimping, check whether the connection between the connector and the wire is strong. Pull gently on the wires to make sure they are not loose, and check that the connector terminals are properly pressed to the wires without any bare conductors exposed.
Completion and testing: After all connections are completed, the necessary testing and verification are carried out to ensure the normal operation of the photovoltaic system. Perform resistance measurements or other relevant tests as required to ensure the stability and electrical performance of the connection.
By following the correct operating procedures and precautions, you can ensure the safety when using photovoltaic crimpers, and ensure the correctness and reliability of the connection.
If you have any questions or need further information about the use of crimping pliers, please feel free to contact us, we will be happy to provide you with more help and information.
