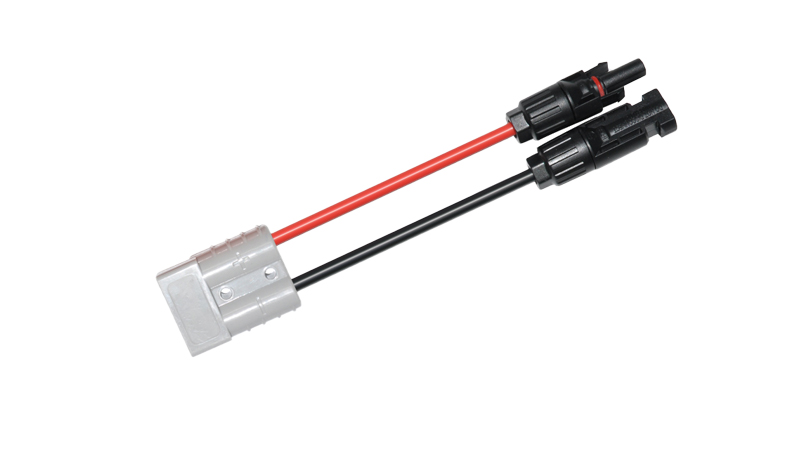

50A Anderson bipolar connector to MC4 PV connector to 60cm 1107 red and black 4mm2 wire
Dongguan Shunkang Performance Optimization Technology Co., Ltd. was founded in 2013, is a professional engaged in photovoltaic connectors, industrial connectors, cable research and development, production of manufacturers, connectors, cables and peripheral components.
Product Model: AC50
Product type: Extension cable
Conductor material: High quality copper tin-plated conductor, with excellent electrical and thermal conductivity, can effectively reduce resistance and energy loss, to ensure stable power transmission.
Insulation material: PC PPO material is used as insulation layer, with excellent insulation performance and durability. It can effectively prevent current leakage and short circuit, and has the characteristics of chemical corrosion and wear resistance, suitable for a variety of harsh working environment.
Wire diameter: 6、8、10 or 12 AWG wire diameter can be selected according to your specific requirements, or customized according to the project requirements. Different wire size specifications provide flexibility and adaptability to meet different power and current transmission requirements.
Length customization: We offer the option of custom length to precisely tailor the length of the cable to your project needs. Whether it is short distance connection or long distance transmission, we can provide cable length to meet the requirements, ensuring flexibility and convenience.
Current rating: The AC50 extension cable is rated at 50A and can reliably carry high current loads for a variety of industrial and commercial applications such as power distribution, mechanical equipment and electrical engineering.
Rated voltage: The rated voltage of the AC50 model extension cable is 600V, which is able to safely transmit high-voltage power to ensure stable power supply and equipment operation.
Impact resistance: The cable has excellent impact resistance, which can withstand mechanical vibration and external impact, protecting the structural integrity and electrical performance of the cable and ensuring long-term reliable operation.
Flame retardant grade: AC50 extension cable conforms to UL94-V2 flame retardant grade standard, with good flame retardant performance. In case of fire, it can effectively stop the spread of flame, reduce the risk of fire, and protect the safety of equipment and personnel.
Ambient temperature: The AC50 model extension cable works in the ambient temperature range from -20 ° C to 105 ° C, ADAPTS to various temperature conditions, has good heat and cold resistance, and ensures the reliability and stability of the cable in different environments.
The AC50 extension cable is a high quality, reliable cable product for a wide range of industrial, commercial and home applications. Through personalization, we can provide the best solution according to your specific requirements. Whether it's power transmission, equipment connection or engineering projects, the AC50 extension cable provides superior performance and reliability.
If you are interested in our products or want to know more about them, please contact us.
