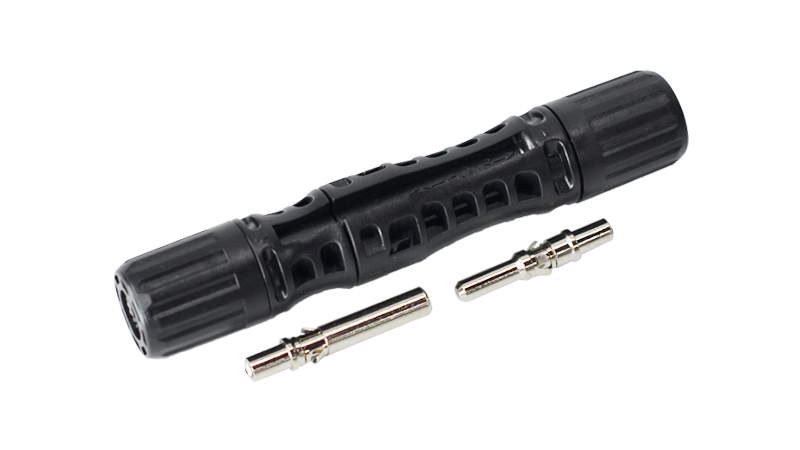

MC415-1M1FPLN01 PV connector: stable and efficient, injecting strong power into the solar system
With the continuous development of solar power generation technology, the MC415-1M1FPLN01 photovoltaic connector, as an innovative high-performance product, provides a stable and efficient solution for the connection of solar energy systems. Let us take a deeper look at its unique features and advantages to present you with an industry-leading PV connector.
The MC415-1M1FPLN01 PV connector uses the latest design concepts and advanced material technologies to provide reliable electrical connections for the construction and operation of solar systems. The following is a detailed description of its key features:
1. Strong carrying capacity:
With a rated voltage of up to 1500V, the connector can withstand high load voltages, ensuring stability and security of energy transmission. The MC415-1M1FPLN01 provides reliable electrical connections for both large commercial solar farms and home PV systems.
2. Excellent operating temperature range:
The MC415-1M1FPLN01 PV connector can operate normally in a wide temperature range from -40 ° C to +90 ° C, and adapt to various harsh climatic conditions. At the same time, the product temperature range of the connector itself can reach -40 ° C to +135 ° C, ensuring reliable operation in extreme temperature environments.
3. Quality materials:
Shunkang PV connector adopts high performance PPO insulation material, with excellent electrical insulation performance and weather resistance, can effectively resist the impact of ultraviolet light and extreme weather. The conductor material is copper tinned, which provides excellent electrical conductivity and corrosion resistance to ensure the efficiency and stability of power transmission.
4. High security level:
The MC415-1M1FPLN01 connector has passed the DCII level safety certification and has undergone rigorous testing and verification to ensure safe and reliable electrical connections in solar energy systems. In addition, the connector has an IP68 waterproof rating, which can effectively protect against water intrusion and improve the system's moisture resistance and corrosion resistance.
5. Low contact resistance:
The contact resistance of the connector is less than 0.35mΩ, which ensures that the loss of energy transmission is minimized and improves the efficiency and power output of the system. Stable electrical connections provide a solid foundation for the performance of solar systems.
6. Multi-point connection system:
The MC415-1M1FPLN01 PV connector uses a multi-point connection system, which can connect multiple cables at the same time to achieve parallel or series connection, providing higher flexibility and scalability. Whether it is a large-scale solar power plant or a small rooftop PV system, it can meet the demand of different scales.
7. Embedded self-locking system:
The connector has an embedded self-locking design to ensure that the connection is firm and reliable, not easy to loosen, and improve the stability and reliability of the system. Users can use it without worrying about loosening or disconnection.
8. Flexible wiring mode and a variety of specifications:
The MC415-1M1FPLN01 PV connector uses a reliable crimping connection method to ensure a tight bond between the cable and the connector, providing a stable electrical connection. At the same time, the connector is suitable for different specifications of 2.5mm², 4mm² and 6mm² cables, to meet a variety of wiring requirements.
The rated currents of the MC415-1M1FPLN01 PV connectors are also accurately calculated and tested, up to 17A for 1.5mm² specifications, 22.5A for 2.5mm² specifications, and 30A for 4mm² to 6mm² specifications, ensuring safe and reliable operation under high load conditions.
In addition, the MC415-1M1FPLN01 PV connector is equipped with UL94-V0 flame retardant rating to effectively prevent the spread of fire and provide additional safety.
In short, the MC415-1M1FPLN01 PV connector has become an indispensable part of solar energy systems with its stable and efficient performance and reliable safety features. It can inject strong impetus into solar power generation and promote the development of sustainable energy, whether in commercial photovoltaic power stations or home solar systems. Choose the MC415-1M1FPLN01 PV connector to ensure high quality and reliability.
