1000V 2-in-1 branch bus connectors: Smart choice for high-voltage solar photovoltaic connectors
For large ground-based photovoltaic power plants, the safety, reliability and durability of the electrical connection system are crucial. As a key component of the cable connector, its performance directly affects the stable operation of the entire photovoltaic power generation system.
Among the many connector options, the MCY10-2M2FPLN01 from SHUNKONN stands out. This 2-in-1 branch bus connector, designed for 1000V high voltage photovoltaic systems, is an industry model.
(Click on the picture for details)
Multiple protection is safe and reliable

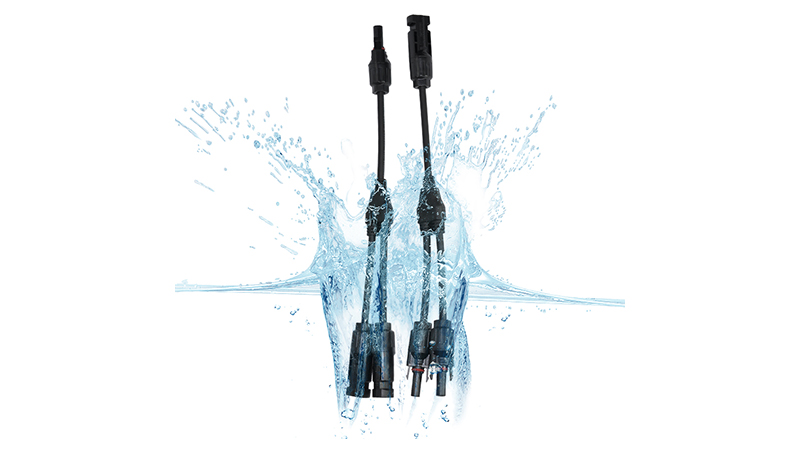

The (Click on the picture for details)PLN01 is designed with IP68 protection to ensure reliable dust and water resistance in harsh outdoor environments and immersed water conditions. Even in rainstorm weather or exposed to dust environment, it can fully resist the invasion of external environmental factors to ensure the stability of electrical connections.
At the same time, PPO environment-friendly flame retardant material is used inside the connector, which has excellent characteristics such as high strength, heat resistance and chemical corrosion resistance, effectively avoiding insulation failure caused by extreme temperature or chemical erosion. Even in the harsh temperature environment of -40℃ to 135℃, it can ensure long-term reliable operation.
30A high current performance is outstanding
With a rated current of up to 30A, the MCY10-2M2FPLN01 can easily meet the power needs of large power stations. The use of high-quality tinned copper conductor, excellent electrical conductivity, resistance is only 0.35mΩ, greatly reducing heat loss, improve the overall system energy conversion efficiency.
Even under maximum load conditions, the connector can maintain low temperature operation, eliminating safety risks caused by excessive heat. The reliable electrical performance ensures the stable power supply of the photovoltaic system.
(Click on the picture for details)
1000V high voltage security
As a supporting product of 1000V high voltage photovoltaic system,MCY10-2M2FPLN01 has excellent insulation performance. The precision design of the insulation structure can reliably isolate high-voltage conductive components even in harsh environments, effectively preventing the occurrence of leakage and short circuit.
In addition, the connector meets the security level of DCII and has reliable protection against grid interference and lightning strikes, effectively reducing the risk of system operation and further enhancing safety. Protect critical components from damage even in extreme situations such as lightning strikes or power grid instability.
Quick installation and convenient construction
The MCY10-2M2FPLN01 uses a self-locking fast connection design, which can be firmly locked with just a few taps, greatly reducing the time cost of field construction. At the same time, it supports a detachable structure to facilitate regular inspection and maintenance, which helps to improve the reliability of the system.
Compared with the traditional bolted connection, the rapidly connected MCY10-2M2FPLN01 greatly improves the installation efficiency, simplifies the field operation process, and provides strong support for the rapid construction of large-scale photovoltaic power plants.
(Click on the picture for details)
Widely used to lead the industry
MCY10-2M2FPLN01 With excellent performance indicators and excellent reliability, widely used in various large-scale ground power stations and industrial and commercial distributed photovoltaic projects. Its excellent protection level and weather resistance enable it to operate stably in harsh environments for a long time and contribute to the sustainable development of clean energy.
As a star product under the SHUNKONN brand, the MCY10-2M2FPLN01 demonstrates the company's outstanding strength in the field of solar photovoltaic connectivity. Relying on professional R&D team and advanced production line,SHUNKONN creates more value for customers with high quality products and excellent service, and continues to lead the industry forward.
